Square U Channel - 6.2mm Panel x 16.5mm Height x 4mm Wall Thickness (US166)

(2 reviews)

Square U Channel - 6.2mm Panel x 16.5mm Height x 4mm Wall Thickness

£ 8.05 8.05 GBP £ 8.05

£ 8.05

Per Metre (ex VAT)

Available by the metre. 10% discount on 25+ metres

Panel Gap: 6.2mm Height: 16.5mm Thickness: 4mm Coil Length: 25m

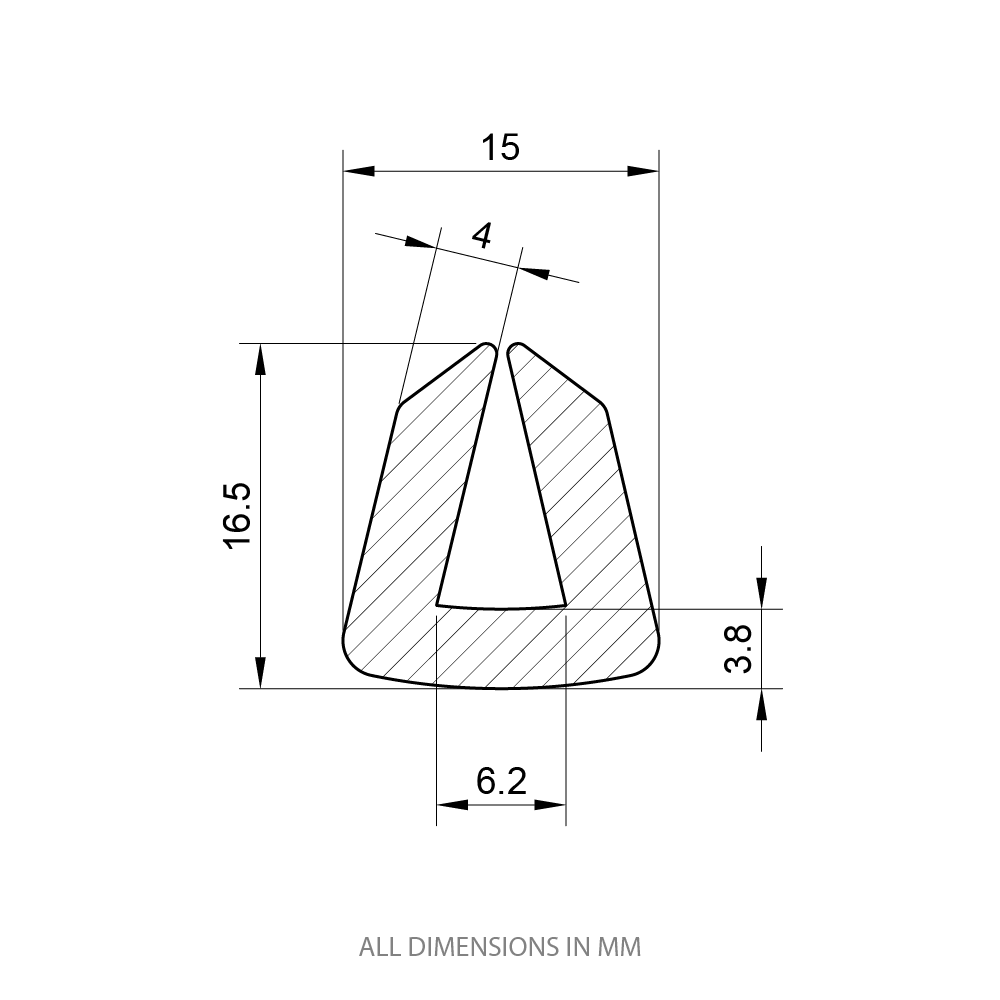

US166 Drawing

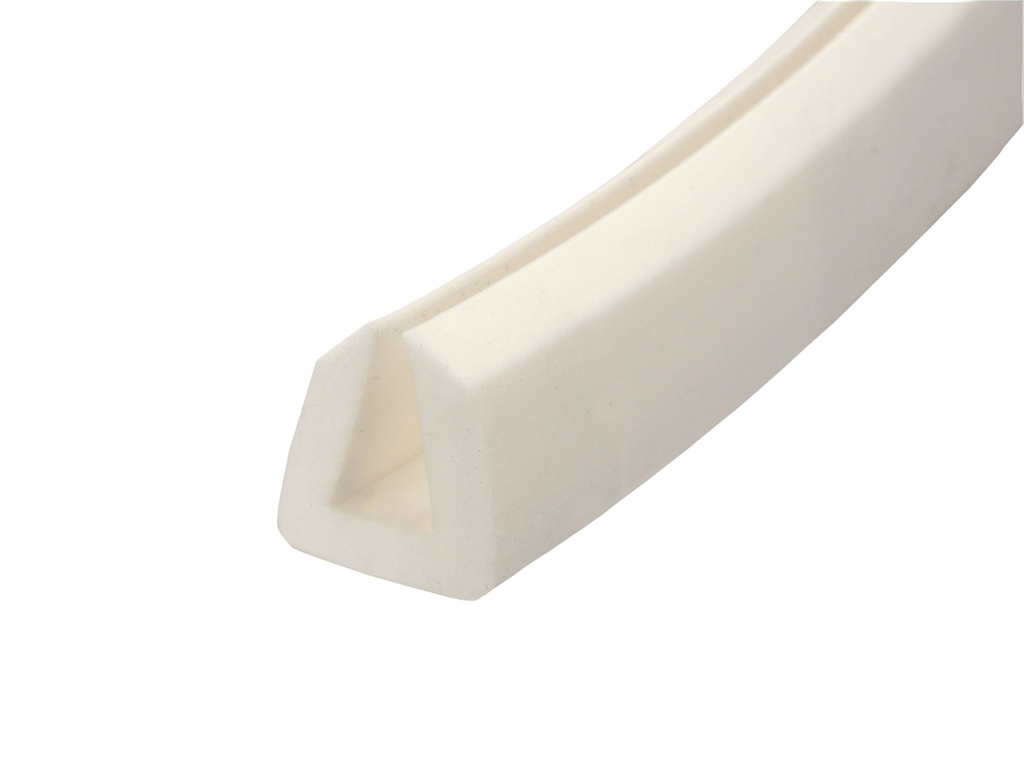

This square white U channel is designed to fit onto a 6.2mm panel edge. It is 16.5mm high x 15mm wide and has a wall thickness of 4mm. This U channel has a square top and can be used for protecting edges on metal, wooden, plastic or fibreglass panels. This seal is also commonly used to make a seal around glass in Aluminium window channels.

We manufacture this product from high quality solid Silicone which is a firm but flexible material suitable for a wide range of everyday and industrial applications. This material has an excellent resistance to water but is not recommended in environments which may come into contact with oil or fuel. Silicone has an operating temperature range between -50°C to +200°C so is ideal for environments that experience very low or very high temperatures. It is around the same hardness (55°- 65° Shore A) as the rubber on a car tyre.

This U channel is not self- gripping but can be bonded onto your edge or into the channel to hold itself in place. We recommend using either S137 (white Silicone) or S138 (clear Silicone). These are available from our website.
