Square U Channel - 3mm Panel x 15mm Height x 1.5mm Wall Thickness (US52)

(2 reviews)

Square U Channel - 3mm Panel x 15mm Height x 1.5mm Wall Thickness

£ 2.90 2.9 GBP £ 2.90

£ 2.90

Per Metre (ex VAT)

Available by the metre. 10% discount on 50+ metres

Panel Gap: 3mm Height: 15mm Thickness: 1.5mm Coil Length: 50m

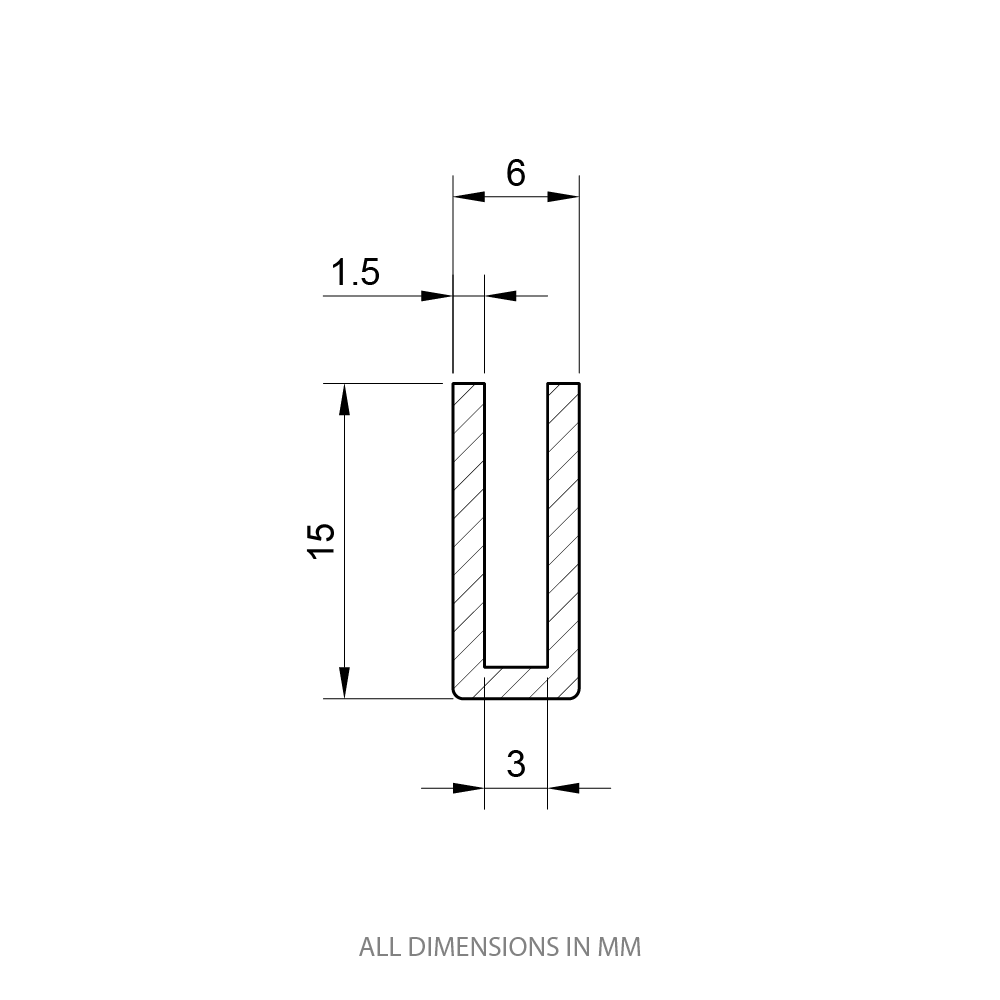

US52 Drawing

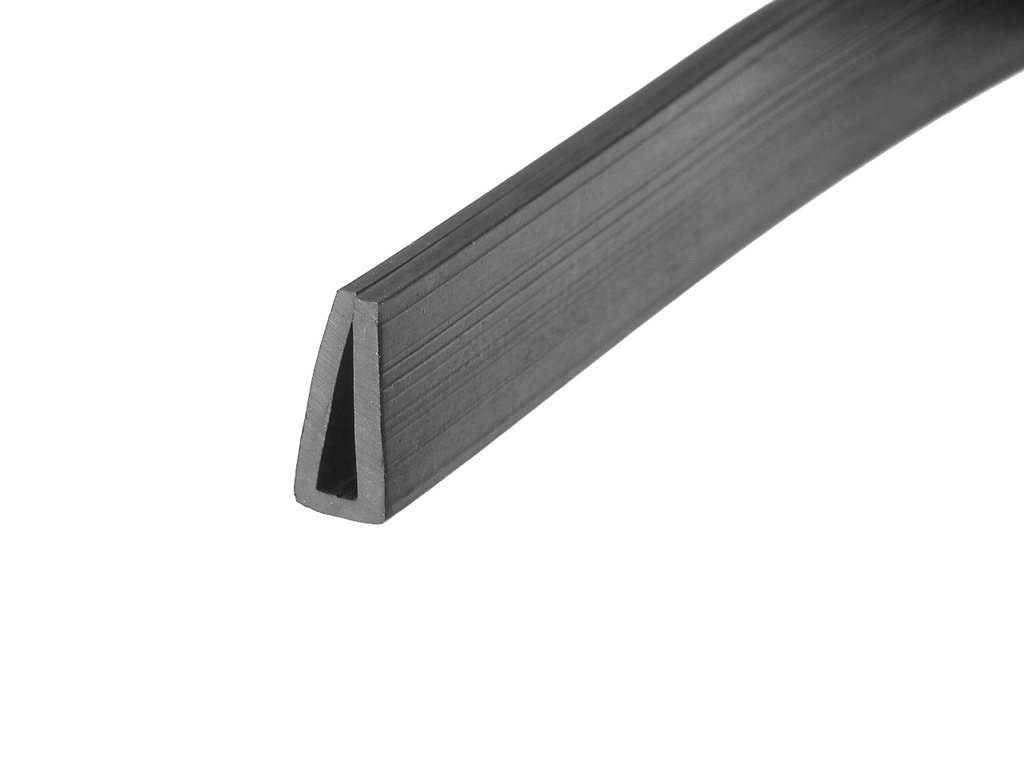

This square U channel is designed to fit onto a 3mm panel edge. It is 15mm high x 6mm wide and has a wall thickness of 1.5mm. This U channel has a square top and can be used for protecting edges on metal, wooden, plastic or fibreglass panels. This seal is also commonly used to make a seal around glass in Aluminium window channels.

We manufacture this product from high quality EPDM which is a rubber compound suitable for a wide range of every day and industrial applications. This material has a good modular resistance to most substances including most chemicals, UV, air and ozone but is not recommended in environments which may come into contact with oil or fuel. EPDM is around the same hardness (70° Shore A) as the rubber on a car tyre and has an operating temperature range between -40°C to +120°C.

This U channel is not self- gripping but can be bonded onto your edge or into the channel to hold itself in place. We recommend using either S136 (Polyurethane) or S137 (white Silicone) or S138 (clear Silicone). These are all available from our website.
