Rounded U Channel - 2.5-4.5mm Panel x 8mm Height x 1.4mm Wall Thickness ( U49 )

Rounded U Channel - 2.5-4.5mm Panel x 8mm Height x 1.4mm Wall Thickness

£ 2.00 2.0 GBP £ 2.00

£ 2.00

Per Metre (ex VAT)
Panel Gap: 2mm.5-4.5mm Height: 8mm Thickness: 1.4mm Coil Length: 50m
U49 Drawing

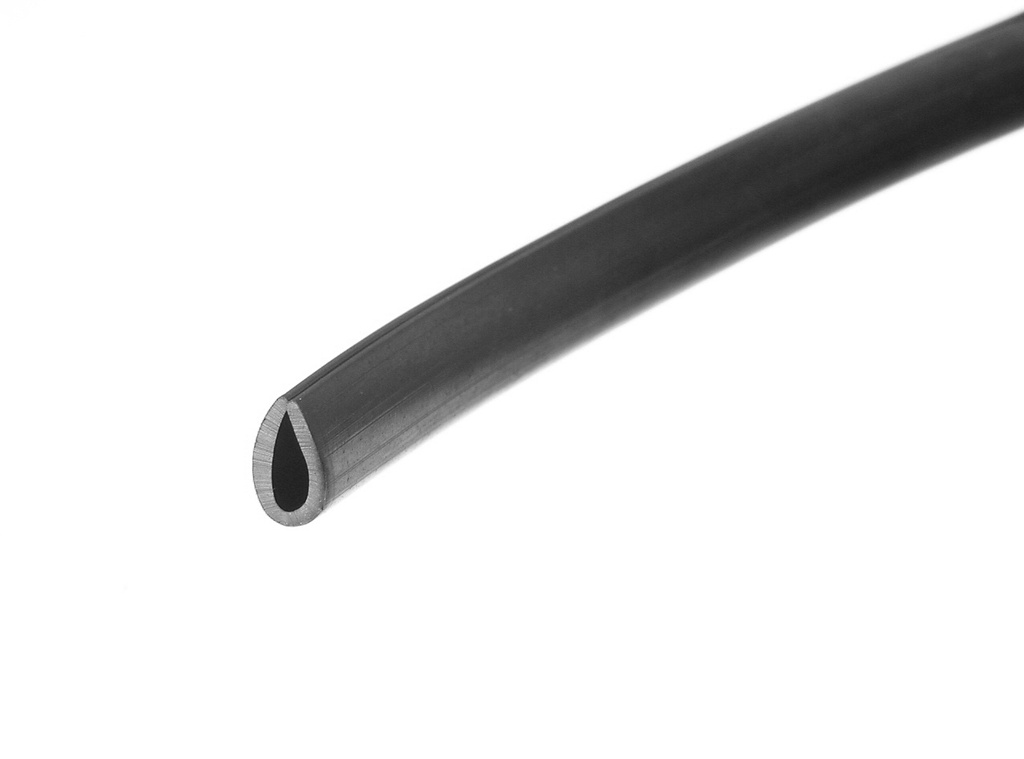

This rounded U channel is designed to fit onto a 2.5mm to 4.5mm panel edge. It is 8mm high x 6.3mm wide and has a wall thickness of 1.4mm. This U channel has a rounded top and can be used for protecting edges on metal, wooden, plastic or fibreglass panels. It can also be used as edge protection on doors and glass in outdoor and indoor environments.

We manufacture this product from high quality EPDM which is a rubber compound suitable for a wide range of every day and industrial applications. This material has a good modular resistance to most substances including most chemicals, UV, air and ozone but is not recommended in environments which may come into contact with oil or fuel. EPDM is around the same hardness (70° Shore A) as the rubber on a car tyre and has an operating temperature range between -40°C to +120°C.

This U channel is not self- gripping but can be bonded onto your edge or into the channel to hold itself in place. We recommend using either S136 (Polyurethane) or S137 (white Silicone) or S138 (clear Silicone). These are all available from our website.
