Rounded U Channel - 1-2mm Panel x 10mm Height x 1.2mm Wall Thickness (U46)

https://www.sealsdirect.co.uk/web/image/product.template/19615/image_1920?unique=a1acf92
(4 reviews)

Rounded U Channel - 1-2mm Panel x 10mm Height x 1.2mm Wall Thickness

£ 1.80 1.8 GBP £ 1.80

£ 1.80

Not Available For Sale

Per Metre (ex VAT)
Panel Gap: 1-2mm Height: 10mm Thickness: 1.2mm Coil Length: 50m

This combination does not exist.

U46 Drawing

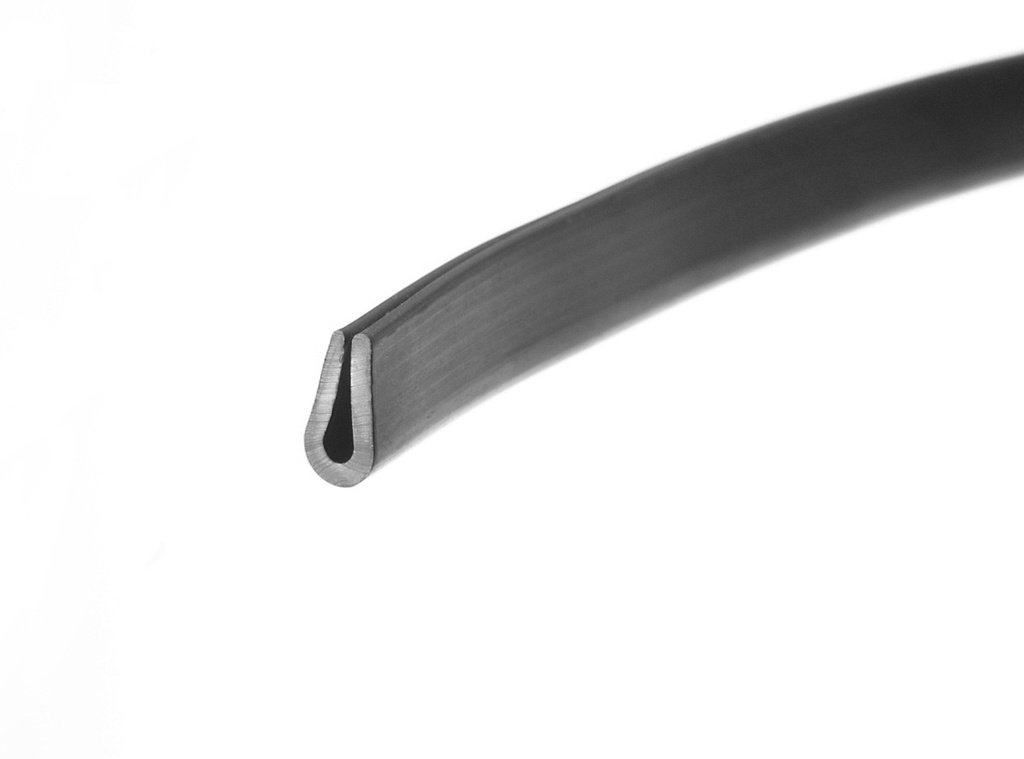

This rounded U channel is designed to fit onto a 1mm to 2mm panel edge. It is 10mm high x 4.7mm wide and has a wall thickness of 1.2mm. This U channel has a rounded top and can be used for protecting edges on metal, wooden, plastic or fibreglass panels. It can also be used as edge protection on doors and glass in outdoor and indoor environments.

We manufacture this product from high quality EPDM which is a rubber compound suitable for a wide range of every day and industrial applications. This material has a good modular resistance to most substances including most chemicals, UV, air and ozone but is not recommended in environments which may come into contact with oil or fuel. EPDM is around the same hardness (70° Shore A) as the rubber on a car tyre and has an operating temperature range between -40°C to +120°C.

This U channel is not self- gripping but can be bonded onto your edge or into the channel to hold itself in place. We recommend using either S136 (Polyurethane) or S137 (white Silicone) or S138 (clear Silicone). These are all available from our website.
