Rounded U Channel - 3mm Panel x 8.8mm Height x 1.4mm Wall Thickness ( U3236 )

Rounded U Channel - 3mm Panel x 8.8mm Height x 1.4mm Wall Thickness

£ 2.90 2.9 GBP £ 2.90

£ 2.90

Per Metre (ex VAT)

Available by the metre. 10% discount on 50+ metres

Panel Gap: 3mm Height: 8.8mm Thickness: 1.4mm Coil Length: 50m
U3236 Drawing

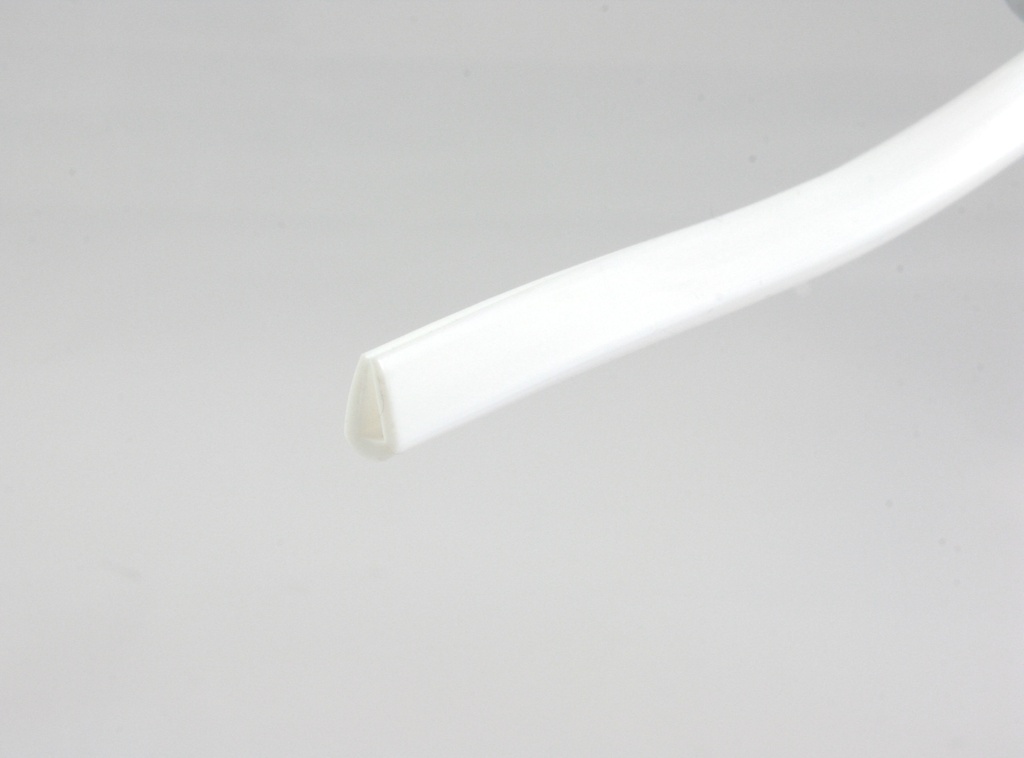

This rounded white U channel is designed to fit onto a 2mm to 3mm panel edge. It is 8.8mm high x 5mm wide and has a wall thickness of 1.4mm. This U channel has a rounded top and can be used for protecting edges on metal, wooden, plastic or fibreglass panels. It can also be used as edge protection on doors and glass in outdoor and indoor environments.

We manufacture this product from high quality PVC which is a compound suitable for a wide range of every day and industrial applications. This material has a good resistance to most substances including most chemicals, oil, fuel, UV, air and ozone. This product is around the same hardness (67° Shore A) as the rubber on a car tyre and has an operating temperature range between -20°C to +60°C.

This U channel is not self- gripping but can be bonded onto your edge or into the channel to hold itself in place. We recommend using either S136 (Polyurethane) or S137 (white Silicone) or S138 (clear Silicone). These are all available from our website.


Technical Drawing
Technical Drawing
Material Data Sheet
Material Data Sheet
