Self Grip Side Seal with 18mm Diameter Bulb - To Fit 2mm to 4mm Panel (ETS3240)

(5 reviews)

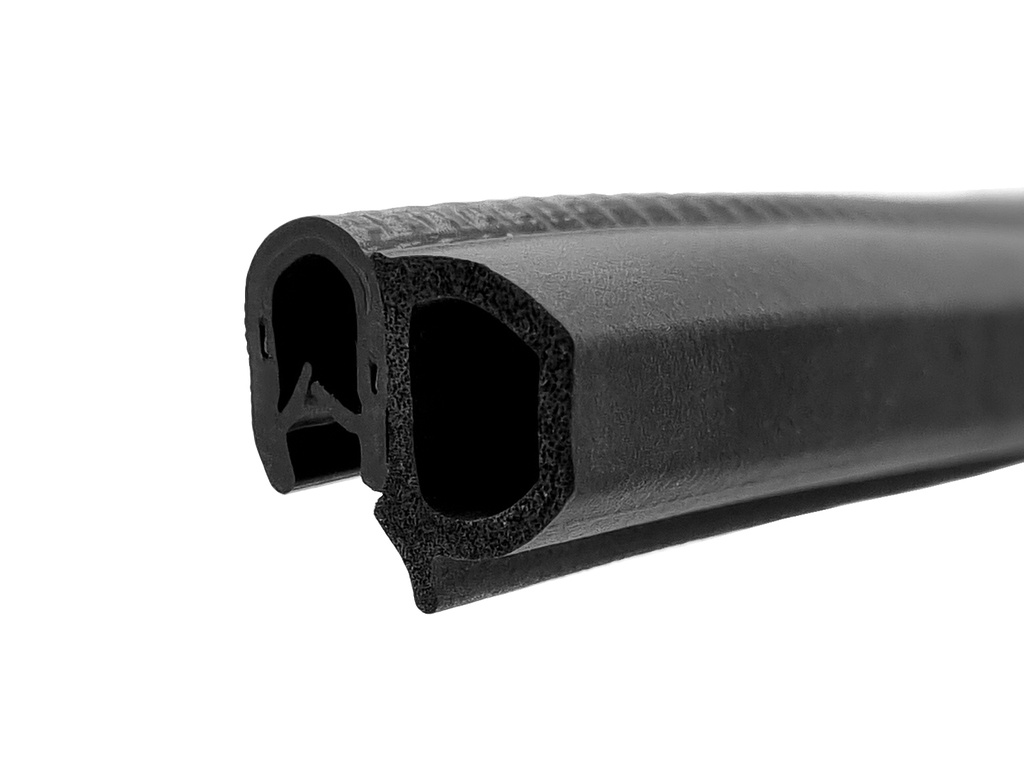

Self Grip Side Seal with 18mm Diameter Bulb - To Fit 2mm to 4mm Panel

£ 5.95 5.95 GBP £ 5.95

£ 5.95

Per Metre (ex VAT)

Available by the metre. 10% discount on 50+ metres

Panel: 2mm to 4mm Diameter: 18mm Coil Length: 50m
ETS3240 Drawing

This edge trim with side seal is designed to fit onto a 2mm to 4mm thick panel edge and has a 18mm square sponge sealing bulb. It is commonly used to create a watertight seal on windows, doors, hatches, lockers, enclosures and cabinets. We recommend compressing the sponge bulb by approximately 30% to create a good seal and avoid compression set.

 It is manufactured with a self-gripping metal spine so will hold itself in place without the need for additional adhesive. This creates a secure section able to hold its shape and withstand impact but can be removed and reused multiple times if required. It can be fitted onto an edge by tapping it on with your hand or a soft faced hammer.

We manufacture this product from high quality PVC and expanded EPDM. These are hard-wearing rubber compounds suitable for a wide range of marine, automotive and industrial applications. These materials have a good resistance to most substances including some chemicals, UV, air and ozone but are not recommended in environments which may come into contact with oil or fuel. The average operating temperature range is between -10°C to +60°C.
