Self Grip Side Seal With 17.5mm Diameter Bulb - To Fit 9.5mm Panel (ETS4081)

https://www.sealsdirect.co.uk/web/image/product.template/23616/image_1920?unique=b1d55ba
(1 review)

Self Grip Side Seal With 17.5mm Diameter Bulb - To Fit 9.5mm Panel

£ 11.18 11.18 GBP £ 11.18

£ 11.18

Not Available For Sale

Per Metre (ex VAT)
Panel: 9.5mm Diameter: 17.5mm Coil Length: 76m

This combination does not exist.

ETS4081 Drawing

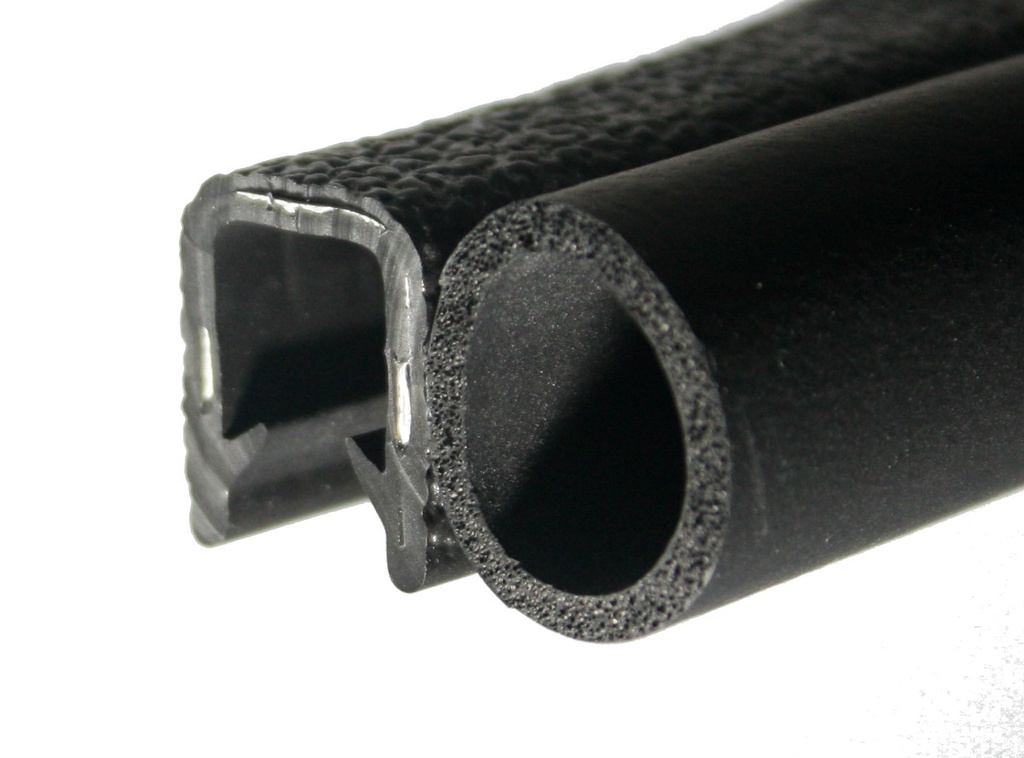

This edge trim with side seal is designed to fit onto a 9.5mm thick panel edge and has a 17.5mm diameter sponge sealing bulb. It is commonly used to create a watertight seal on windows, doors, hatches, lockers, enclosures and cabinets. We recommend compressing the sponge bulb by approximately 30% to create a good seal and avoid compression set.

It is manufactured with a self-gripping metal spine so will hold itself in place without the need for additional adhesive. This creates a secure section able to hold its shape and withstand impact but can be removed and reused multiple times if required. It can be fitted onto an edge by tapping it on with your hand or a soft faced hammer.

We manufacture this product from high quality PVC and expanded EPDM. These are hard-wearing rubber compounds suitable for a wide range of marine, automotive and industrial applications. These materials have a good resistance to most substances including some chemicals, UV, air and ozone but are not recommended in environments which may come into contact with oil or fuel. The average operating temperature range is between -10°C to +60°C.
