Custom Rubber P Seals
Manufactured to order from sponge and solid materials in a selection of sizes, colours and hardnesses.
Looking for an off-the-shelf product? View our extensive range of rubber P seals available for next working day delivery.
We can manufacture custom rubber P seals in a selection of solid and sponge materials. The simplistic shape of this profile allows this section to be used for sealing hatches, doors and floodgates within most industry sectors for restoration and original build projects. We normally manufacture these profiles with a hollow centre to aid compression but they can also be extruded as a solid section without the hollow middle in the centre of the P.
Depending on your projects requirements, we are able to manufacture a custom extrusion with any diameter bulb, flange length and wall thickness. This allows us to manufacture a bespoke seal with a bulb that will compress around 30% when the hatch, door or gate is closed. The flange (otherwise known as the tail) can also be extruded in any length so that there is a sufficiently large area to bond or mechanically fix the rubber P seal onto the required surface.
Our custom rubber profiles are made-to-order based on your projects requirements. Please contact us with your specifications.
Material and Dimensions
Rubber P seals are available from an extensive range of
off-the-shelf products, but can also be manufactured to order to suit your
projects requirements. To enable us to look at standard or custom products, we
require the following information.
A: Wall Thickness
B: Flange Length
C: External Bulb Diameter
D: Internal Bulb Diameter
E: Material
F: Hardness or Density
G: Number of Metres
Our Custom Rubber Seal Manufacturing Process
We work with a large range of rubber and plastic compounds including EPDM, Natural rubber, Neoprene, Nitrile, Silicone and PVC, many of which are available in either sponge or solid forms. This selection allows us to extrude a profile taking into account any environmental, chemical or temperature demands.
The manufacturing process starts with our specialist toolmakers who turn your sample or technical dimensioned drawing into a tool that can be used to extrude an exact replica of your rubber seal. This extrusion process uses temperature and pressure to push your chosen rubber compound through the tool to extrude the required shape. The extruded seal is then cured using heat to vulcanise and harden the extrusion.
Although the majority of rubber seals are manufactured using a very similar procedure, we understand that your sealing solution may require additional non-standard processes. This could include joining, applying self-adhesive backing, or cutting to desired lengths. Whilst it is possible to do this on-site after production, it is often preferable to do this at the time of manufacture to increase the speed and ease of installation of the final product.
Manufacturing a custom rubber seal can be completed at a relatively low cost with production runs requiring as little as 30 metres. For large production quantities, we have the option of manufacturing sample lengths before going to bulk production. This allows you to look at the finished product and test how it performs. The process of moving from concept to delivery can normally be fulfilled within two to three weeks, depending on the material and complexity of the profile.
Sample or Concept
Technical Drawing
Manufacturing
Delivery
Seal Design Service
Our CAD facilities allow us to work with you in designing the
best sealing solution for your project. If
your sealing requirements cannot be met by a standard section and you do not
have a sample or technical dimensioned drawing, our Design Engineers can design
a custom solution to your requirements.
Standard Rubber P Seals
The majority of our standard products are sold by the metre
and are normally available for dispatch on a next working day courier from our
Hampshire based warehouse. Our off-the-shelf rubber P sections are available in
a range of sizes with different diameter bulbs and flange lengths.

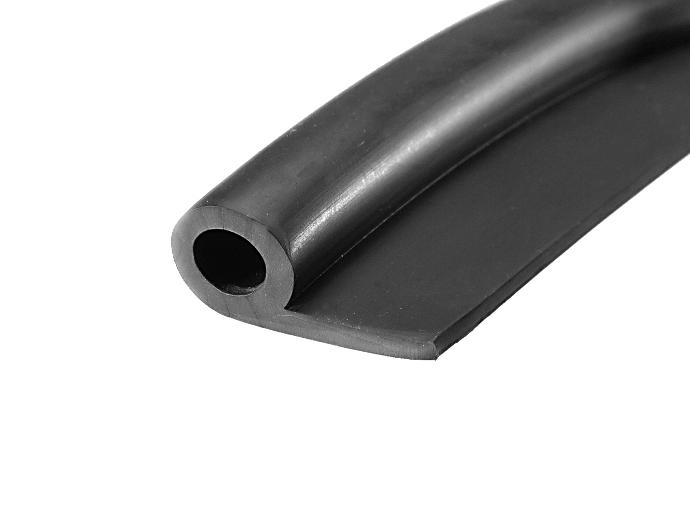

P Shaped Rubber Seals
Our
off-the-shelf rubber P seals are manufactured in EPDM and can be purchased in
three different sizes. They differ by the diameter of the bulb, length of the
tail and wall thickness.

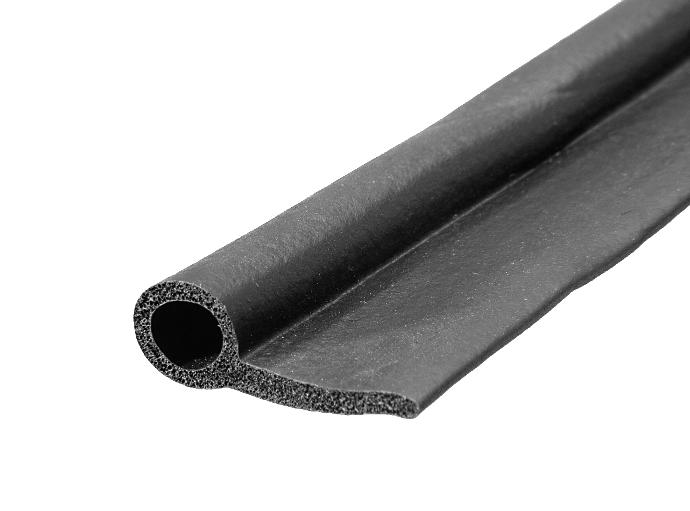

Sponge Seals
Sponge rubber sections are manufactured from closed-cell materials so can
be used to create watertight seals. These are often adhesive backed so can be
easily fitted to most clean surfaces.
Sponge Automotive Seals
In the same way as generic sponge seals, our sponge
automotive seals are suitable making watertight seals to stop water ingress. Although
they are primarily used for automotive applications, their unique shapes allow
them to be used for other sealing projects.
Other Custom Rubber Seals
Custom rubber seals can be extruded in virtually any shape in most rubber compounds. Different profiles are suitable for different applications and selecting the correct shape, material and hardness is essential to ensure a long term sealing solution. Visit our
Custom Rubber Seal
directory to view our range of made-to-order extrusion shapes, gaskets and custom products.
Contact Us With Your Requirements
With over 50 years’ experience within the rubber sealing industry, our team has extensive experience in identifying the best rubber seals, trims, and gaskets for our customers. We are able to work with you to find the best rubber sealing solution for your project.
Complete the form below for a no-obligation free quote. Once received our team will look into whether your requirements can be met by an off-the-shelf product or provide a quotation for a custom made solution. Please include details of the seal you require, including dimensions, materials, hardness, and how many metres you require.
