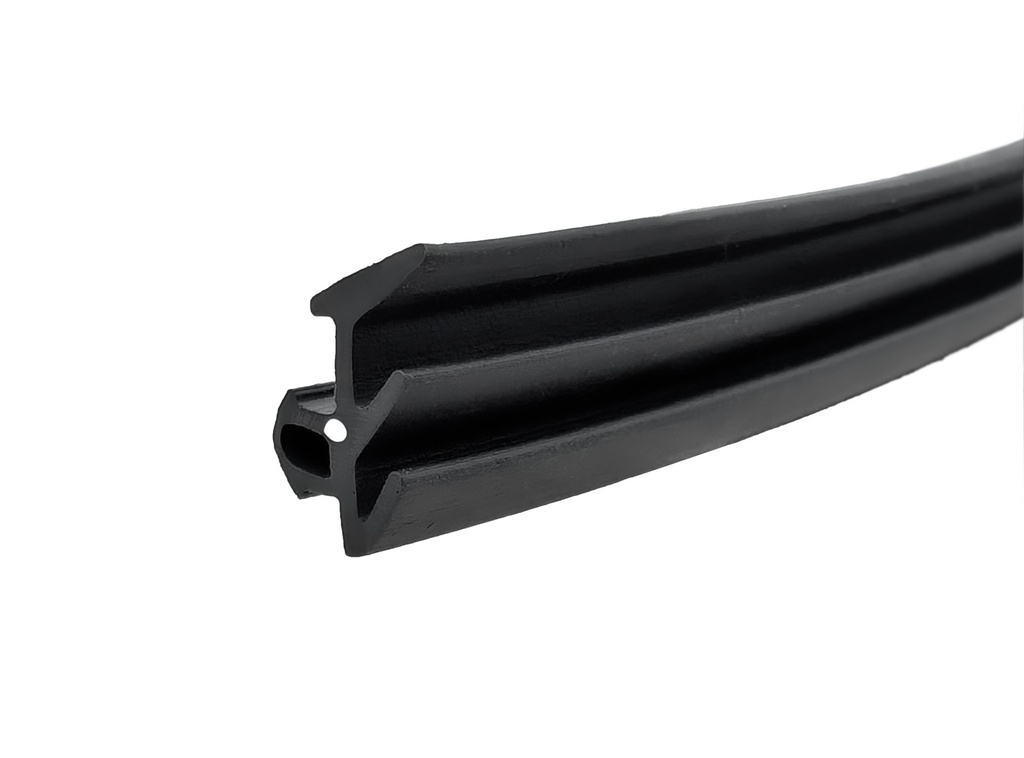

This E gasket fits into a 4mm wide slot. It is designed to be inserted between the glass and frame to apply compression against the window and create a watertight seal by holding the window tightly in place. This product can be used in either aluminium glazing or uPVC glazing systems.
This seal is usually used alongside a wedge gasket. The arrow foot pushes into a slot in the frame which holds the seal in place whilst you locate the glass. Once this gasket and the glass are in place, you can then push a wedge gasket (sold separately) in the opposite side. This seal contains a central anti-stretch cord which stops the seal being unintentionally stretched during installation. This minimises the chance of shrinkage and gaps around your window frame.
If you would like help identifying your glazing gasket, please send us a photograph of the end profile of the seal for identification. You can also look at our E Gaskets for other shapes and sizes.

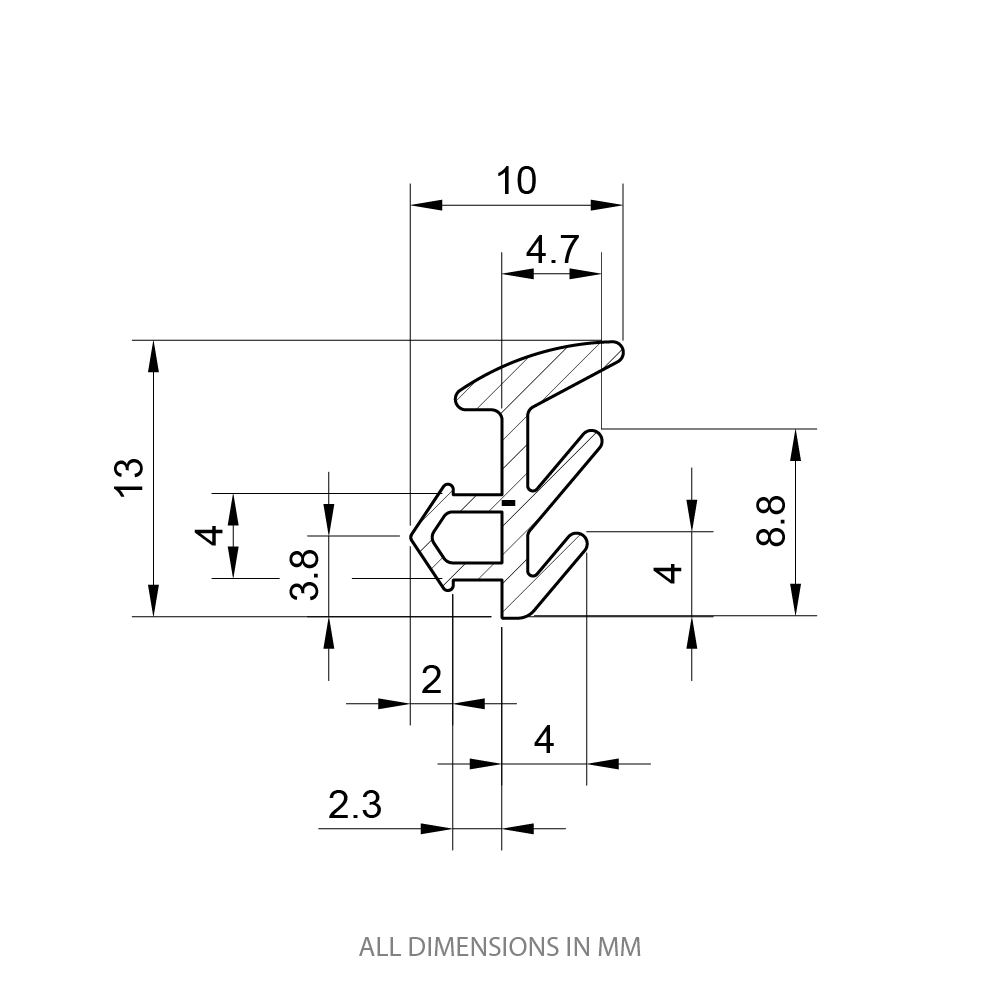

Technical Drawing
Material Data Sheet
