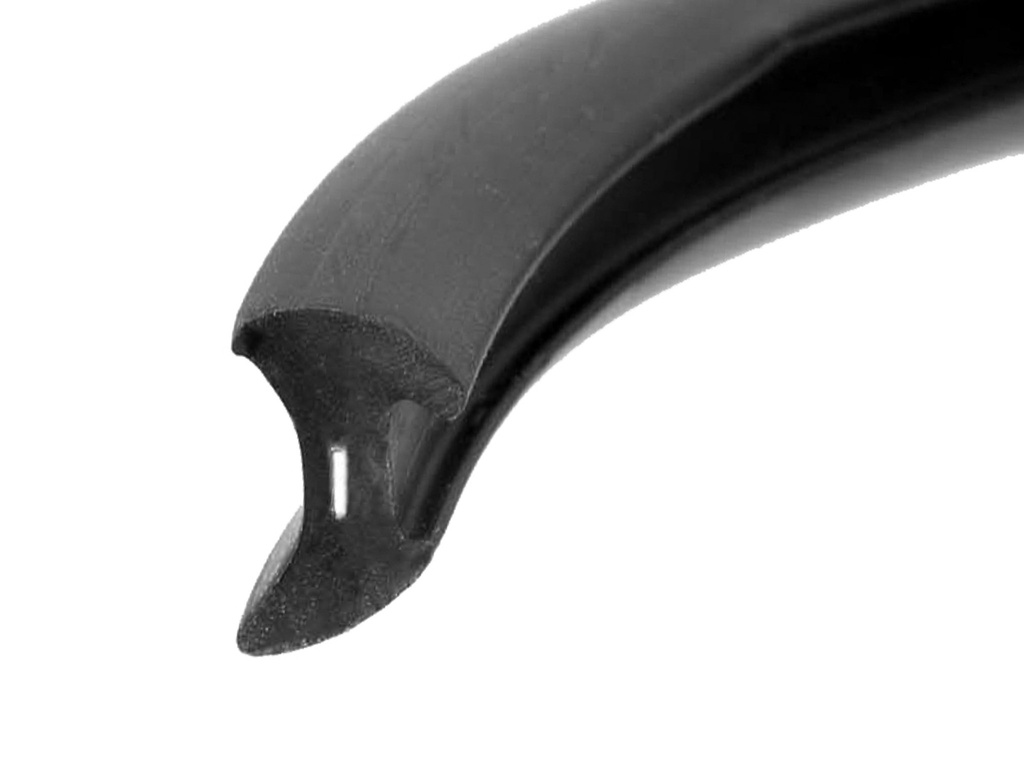

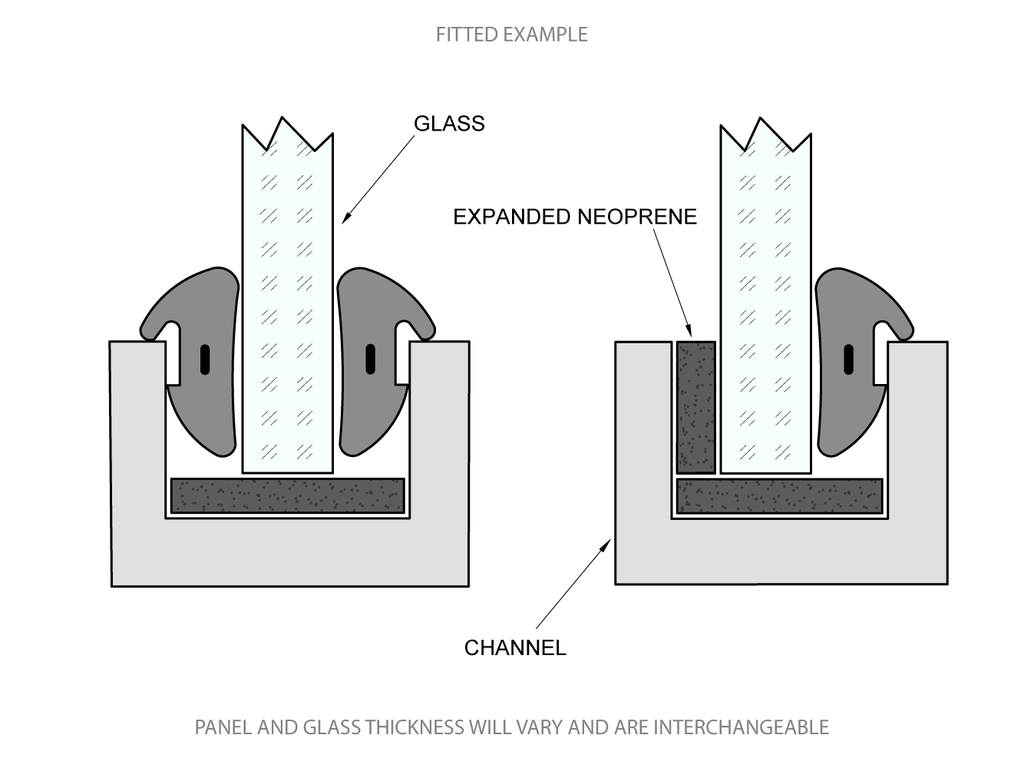

This wedge gasket fits a 3mm gap and is designed to be inserted between the glass and frame to apply compression against the window and create a watertight seal by holding the window tightly in place. This product can be used in either aluminium glazing or uPVC glazing systems.
Wedge gaskets can be easily installed by simply pushing the gasket into the gap using your fingers. It contains a central anti-stretch cord which stops the seal being unintentionally stretched during installation. This minimises the chance of shrinkage and gaps around your window frame.
To ensure that you purchase the correct sized wedge gasket, we recommend that you carefully measure the gap where this seal will need to be fitted. Alternatively, you can measure the internal width of the channel and deduct the thickness of the glass. Take a look at our Wedge Gaskets for other sizes.

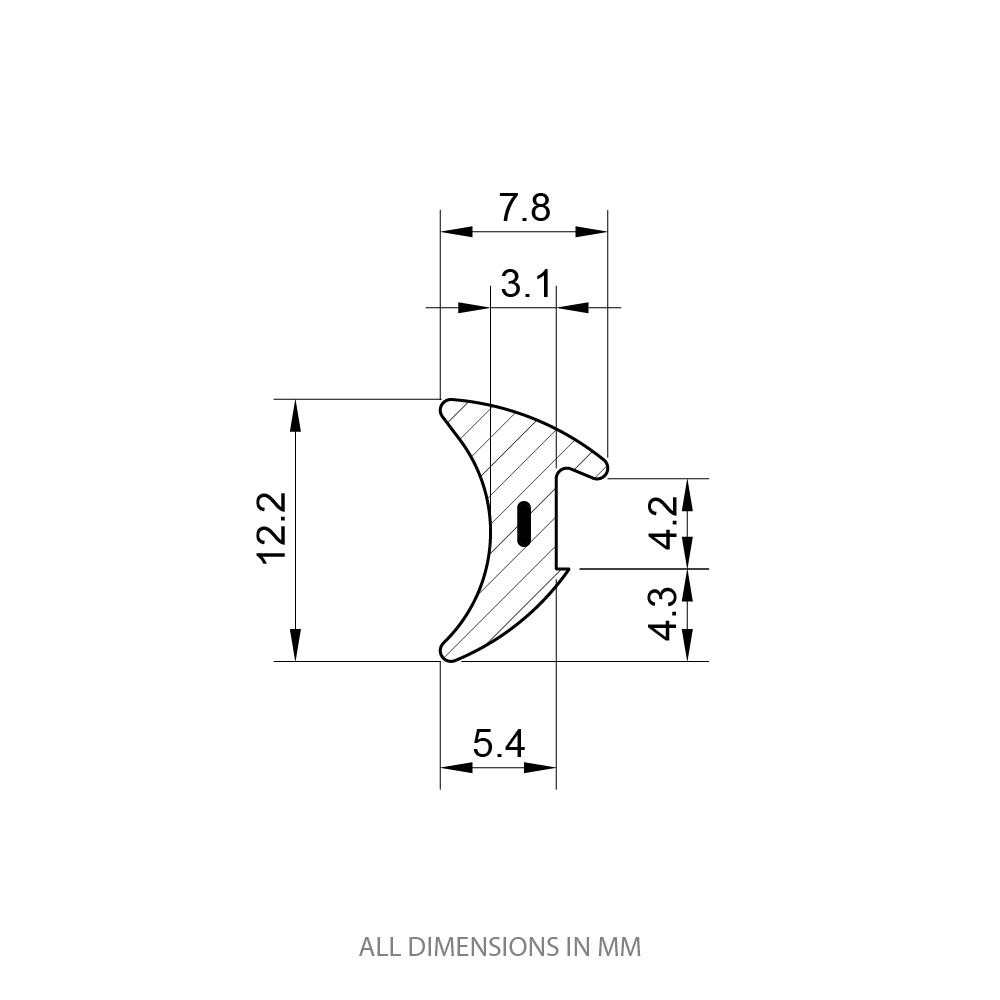

Technical Drawing
Material Data Sheet
