Square U Channel - 9mm Panel x 13mm Height x 1.6mm Wall Thickness (US55)

(1 review)

Square U Channel - 9mm Panel x 13mm Height x 1.6mm Wall Thickness

£ 3.75 3.75 GBP £ 3.75

£ 3.75

Per Metre (ex VAT)

Available by the metre. 10% discount on 50+ metres

Panel Gap: 9mm Height: 13mm Thickness: 1.6mm Coil Length: 50m
US55 Drawing

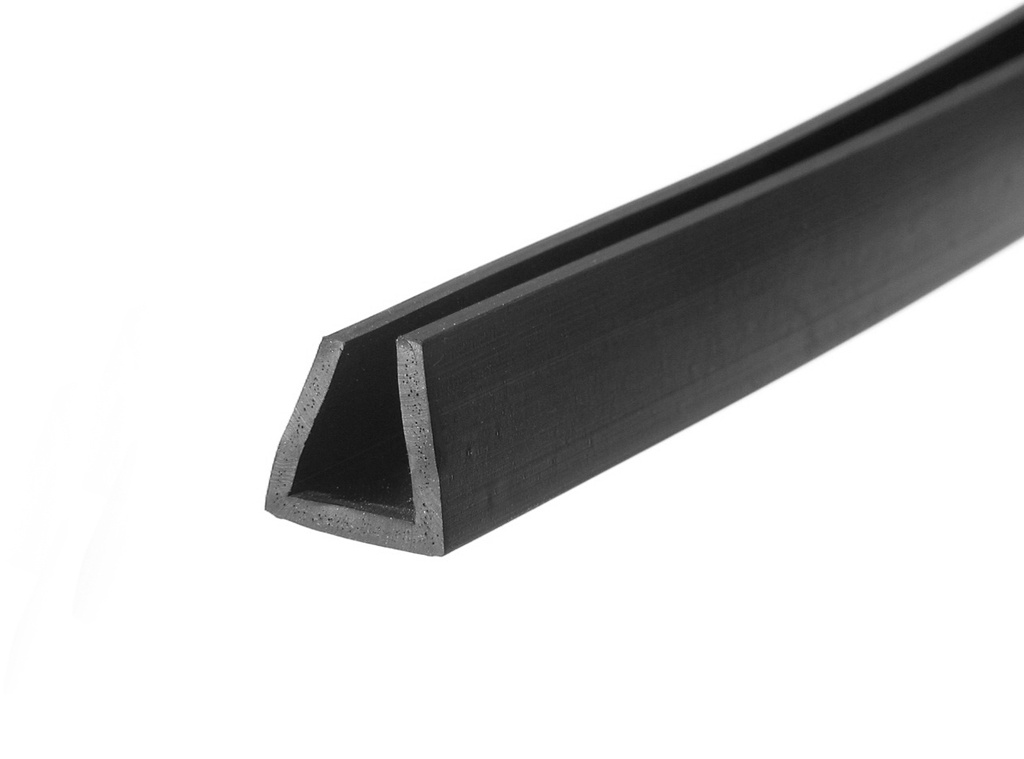

This square U channel is designed to fit onto a 9mm panel edge. It is 13mm high x 12.2mm wide and has a wall thickness of 1.6mm. This U channel has a square top and can be used for protecting edges on metal, wooden, plastic or fibreglass panels. This seal is also commonly used to make a seal around glass in Aluminium window channels.

We manufacture this product from high quality EPDM which is a rubber compound suitable for a wide range of every day and industrial applications. This material has a good modular resistance to most substances including most chemicals, UV, air and ozone but is not recommended in environments which may come into contact with oil or fuel. EPDM is around the same hardness (70° Shore A) as the rubber on a car tyre and has an operating temperature range between -40°C to +120°C.

This U channel is not self- gripping but can be bonded onto your edge or into the channel to hold itself in place. We recommend using either S136 (Polyurethane) or S137 (white Silicone) or S138 (clear Silicone). These are all available from our website.
