Square U Channel - 6.4mm Panel x 10mm Height x 1.8mm Wall Thickness (US160)

(1 review)

Square U Channel - 6.4mm Panel x 10mm Height x 1.8mm Wall Thickness

£ 2.70 2.7 GBP £ 2.70

£ 2.70

Per Metre (ex VAT)

Available by the metre. 10% discount on 50+ metres

Panel Gap: 6.4mm Height: 10mm Thickness: 1.8mm Coil Length: 50m
US160 Drawing

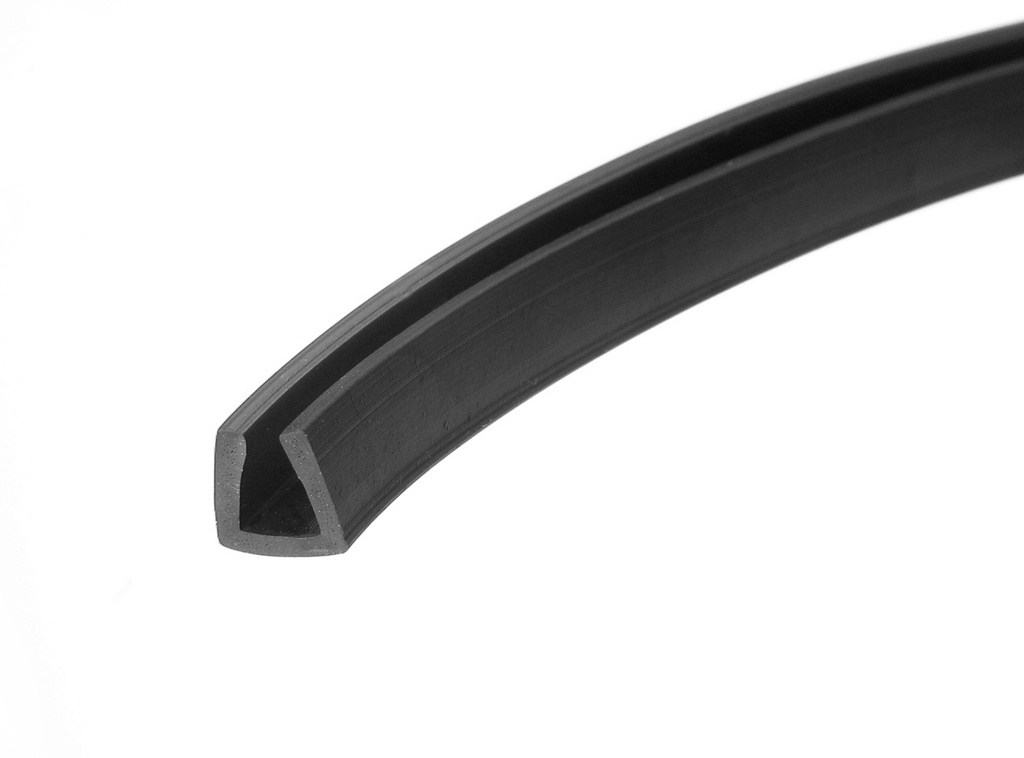

This square U channel is designed to fit onto a 6.4mm panel edge. It is 10mm high x 10mm wide and has a wall thickness of 1.8mm. This U channel has a square top and can be used for protecting edges on metal, wooden, plastic or fibreglass panels. This seal is also commonly used to make a seal around glass in Aluminium window channels.

We manufacture this product from high quality EPDM which is a rubber compound suitable for a wide range of every day and industrial applications. This material has a good modular resistance to most substances including most chemicals, UV, air and ozone but is not recommended in environments which may come into contact with oil or fuel. EPDM is around the same hardness (70° Shore A) as the rubber on a car tyre and has an operating temperature range between -40°C to +120°C.

This U channel is not self- gripping but can be bonded onto your edge or into the channel to hold itself in place. We recommend using either S136 (Polyurethane) or S137 (white Silicone) or S138 (clear Silicone). These are all available from our website.
