T Shaped Rubber Seal - 17.3mm x 17mm x 3mm Wall Thickness (T616)

https://www.sealsdirect.co.uk/web/image/product.template/20184/image_1920?unique=bede44c
(1 review)

T Shaped Rubber Seal - 17.3mm x 17mm x 3mm Wall Thickness

£ 7.85 7.8500000000000005 GBP £ 7.85

£ 7.85

Not Available For Sale

Per Metre (ex VAT)
Width: 17.3mm Height: 17mm Thickness: 3mm Coil Length: 30m

This combination does not exist.

T616 Drawing

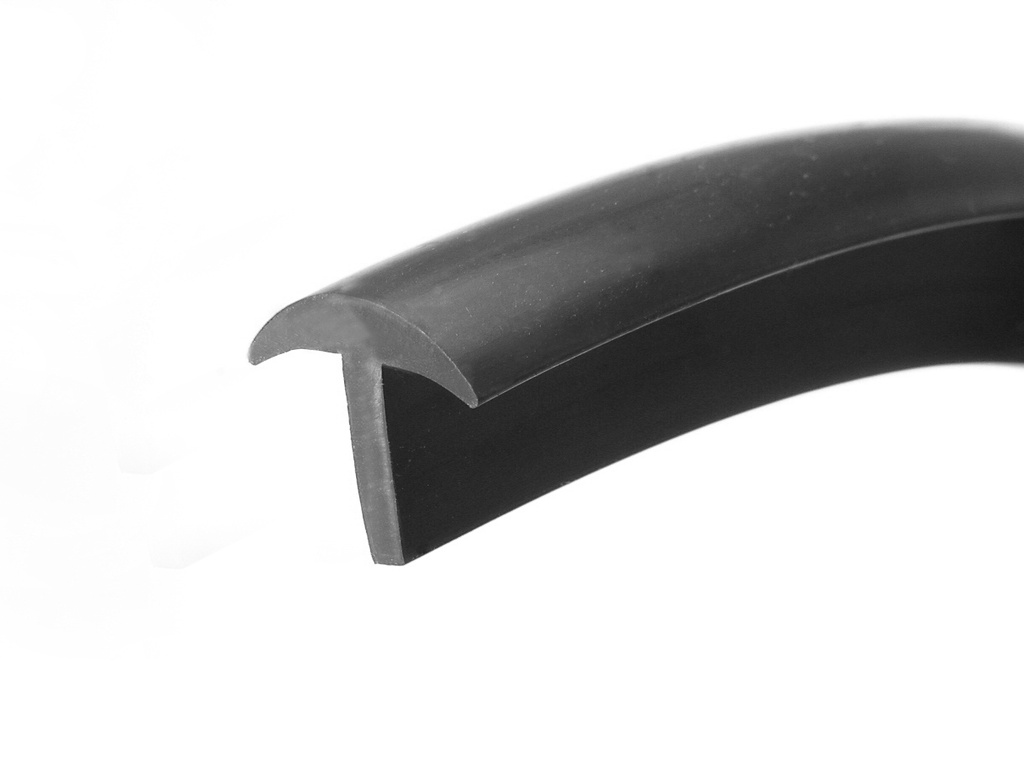

This T section is 17.3mm wide by 17mm high and has a wall thickness of 3mm. T sections are often used to form a seal between two surfaces in the same plane. The top of the T is slightly domed to create a gradual visually aesthetic step for decorative applications.

The flange/tail length can be extended or thickened by bonding solid neoprene strip onto it using a good quality contact adhesive such as our A139 or A262 (available from our website). This profile can also be bonded onto most clean flat surfaces such as plastic, wood and metal.

We manufacture this product from high quality EPDM which is a rubber compound suitable for a wide range of every day and industrial applications. This material has a good modular resistance to most substances including most chemicals, UV, air and ozone but is not recommended in environments which may come into contact with oil or fuel. EPDM is around the same hardness (70° Shore A) as the rubber on a car tyre and has an operating temperature range between -40°C to +120°C.
