Over time the seal around your caravan or motorhomes door will deteriorate and become less effective resulting in potential water ingress and drafts. This generic seal is designed to replace your existing door seal.

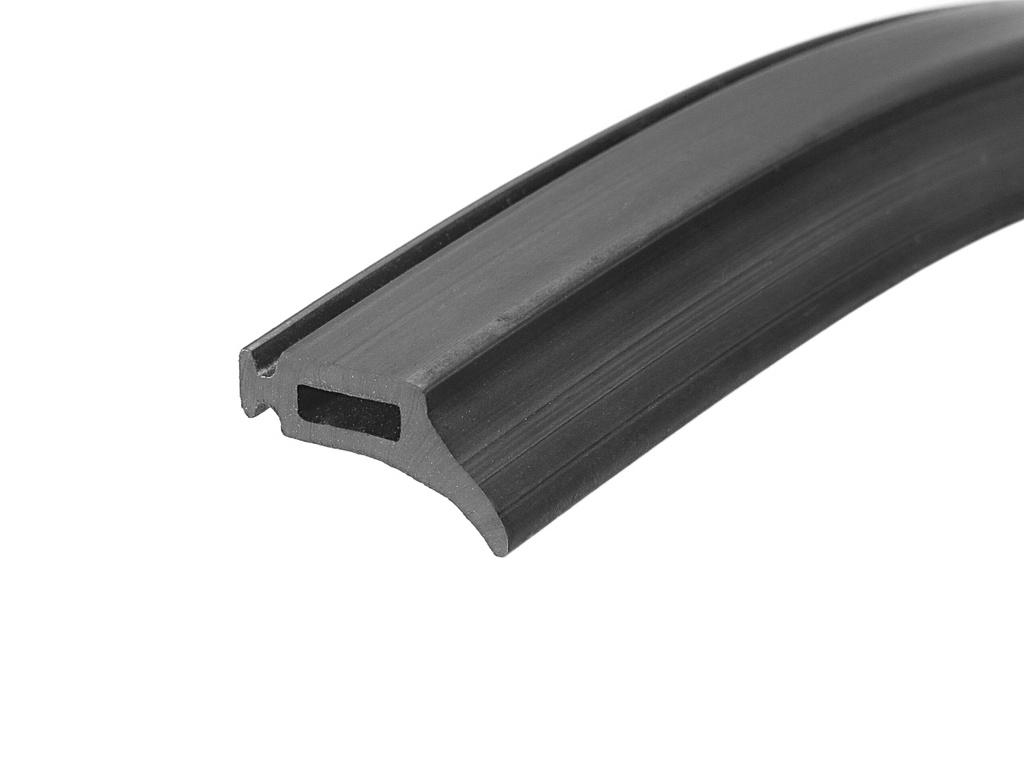

This product is comprised of solid Neoprene T shaped foot and hollow Neoprene square bulb with lip. The foot pushes into a 5mm wide by 1mm deep keyway channel in your door frame to hold the seal in place without the need for additional adhesive. The bulb compresses when the door is closed to create a water and air tight seal protecting your caravan or motorhome from leaks.
This product is manufactured from high quality solid Neoprene which is a firm but flexible material suitable for a wide range of every day and industrial applications. This material has a good modular resistance to most substances including oil, UV, air and ozone. Solid Neoprene is around the same hardness (70° Shore A) as the rubber on a car tyre and has an operating temperature range between -20°C to +80°C.
Technical Drawing
Material Data Sheet
