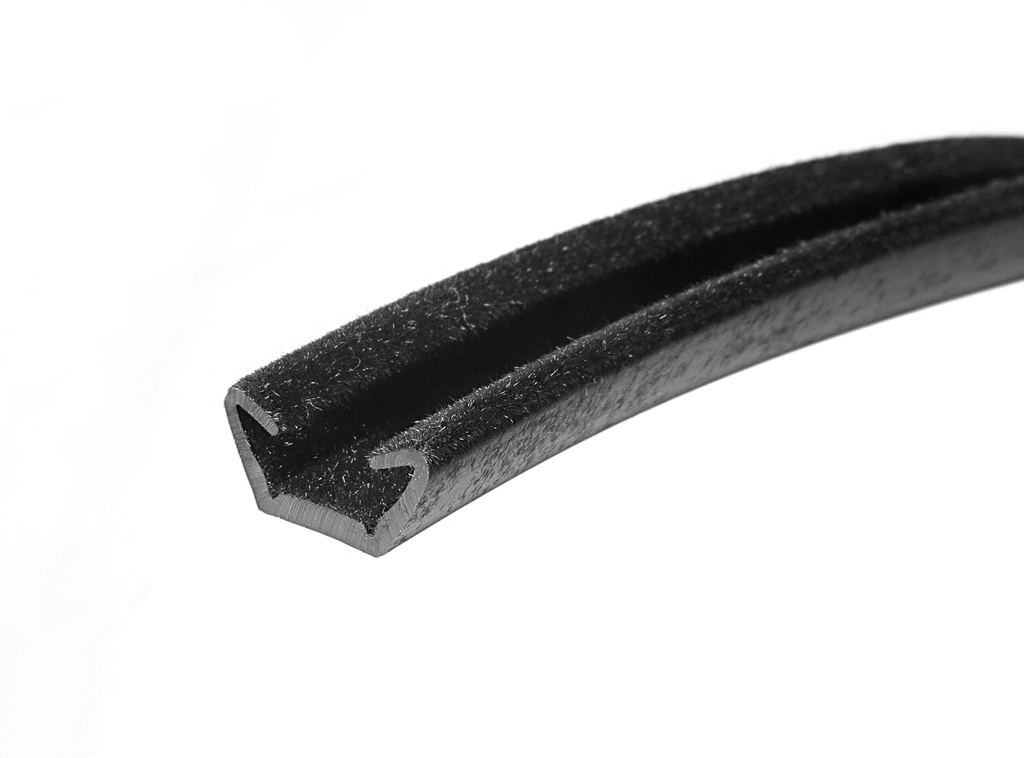

This flocked lined window rubber is suitable for sliding windows on boats, caravans and cars that need to retain a waterproof seal. It is preformed into U shape that fits directly into the channel or window frame. This section fits into a channel measuring 10mm wide by at least 8mm high. We recommend using a 4.75mm thick Perspex or glass.
Flocked lined window rubbers are coated with a high quality flocked lining to allow the window to easily slide within the channel. Unlike standard U channels, the flocked coating allows the window to glide without friction or rubbing.
We manufacture this product from high quality EPDM which is a rubber compound suitable for extreme environments and weather conditions. This material has a good modular resistance to most substances and is a strong and robust material to securely hold the window into your boat, car or van.
The seal should fit neatly into a 10mm by 8mm channel. However, we recommended that you bed the rubber in with a small amount of silicone sealant, such as S138 (sold separately), if your channel is slightly wider than 10mm.
Technical Drawing
Material Data Sheet
