5mm Diameter Round Bead With 1mm Panel Gap (AT2009)

(1 review)

5mm Diameter Round Bead With 1mm Panel Gap

£ 1.65 1.6500000000000001 GBP £ 1.65

£ 1.65

Per Metre (ex VAT)

Available by the metre. 10% discount on 100+ metres

Diameter: 5mm Panel Gap: 1mm Coil Length: 100m
AT2009 Drawing

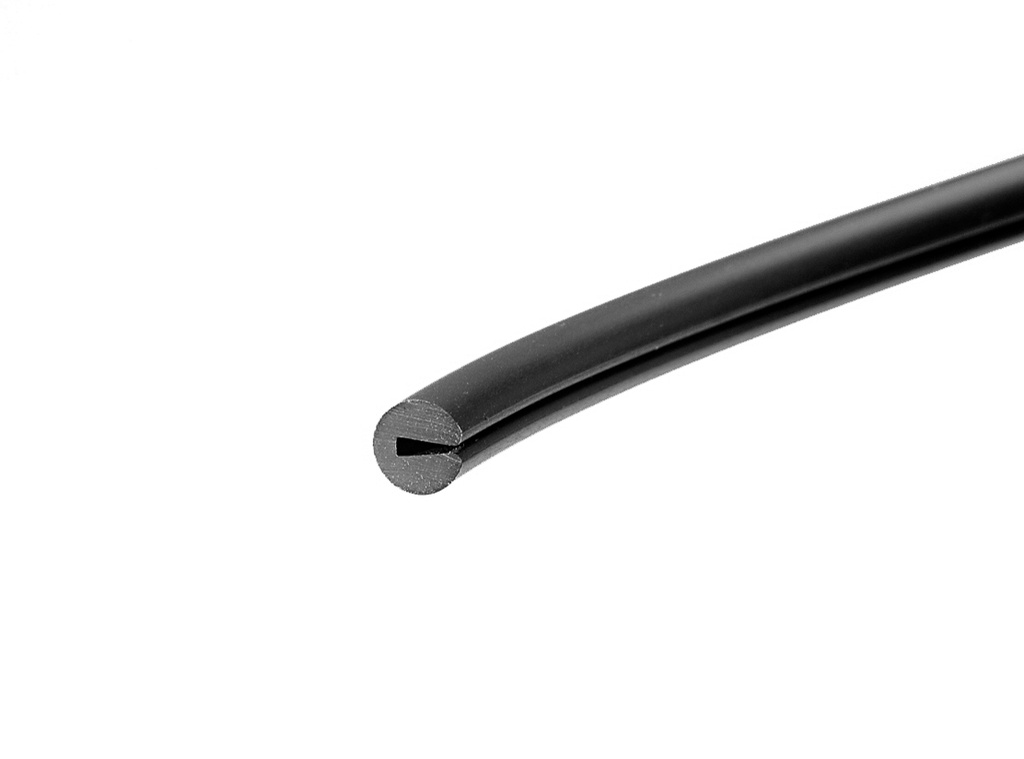

This round rubber section is 5mm diameter with a 1mm slot and supplied by the linear metre. Although its primary use is within the automotive industry, the unique shape makes this section ideal for other DIY, marine or industrial applications. The smooth black appearance allows this seal to be used as a neat sealing solution in projects where the product will be visible.

This section is designed to be fitted over an edge or panel approximately 1mm thick. It will need to be bonded onto the edge using a good quality adhesive (S136) or silicone sealant (S138). These products are available via our website.

We manufacture this product from high quality PVC which is a compound suitable for a wide range of everyday and industrial applications. This material has a good resistance to most substances including most chemicals, oil, fuel, UV, air and ozone. This product is around the same hardness (67° Shore A) as the rubber on a car tyre and has an operating temperature range between -20°C to +60°C.
