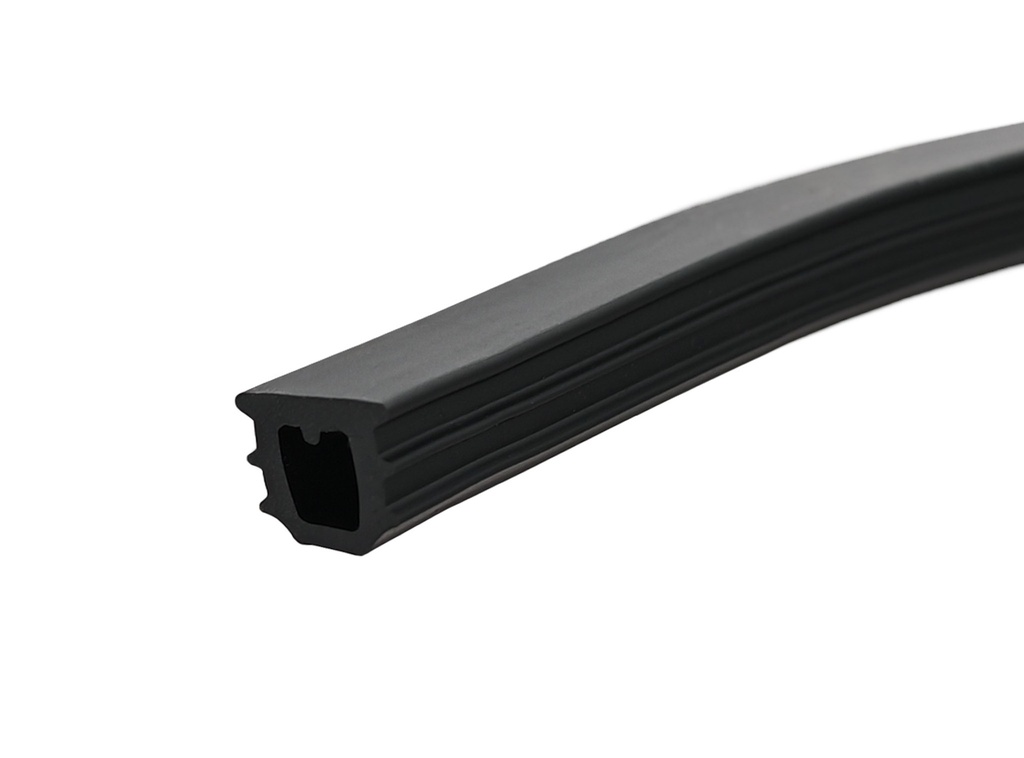

This channel filler is 9.6mm by 8.7mm and is designed to fit a 6mm to 8.5mm wide channel. It should fit snugly in the channel to stop the accumulation of water or debris. It is normally used in the opposite channel to a flocked sliding window seal in the part of the frame that the window will never slide into.
We manufacture this product from high quality EPDM which is a rubber compound suitable for a wide range of everyday and industrial applications. This material has a good modular resistance to most substances including most chemicals, UV, air and ozone but is not recommended in environments which may come into contact with oil or fuel. EPDM is around the same hardness (70° Shore A) as the rubber on a car tyre and has an operating temperature range between -40°C to +120°C.
This item is manufactured in 100 metre coils. For example, an order for 120 metres would be supplied as 100 metres and 10 metres.
Technical Drawing
Material Data Sheet
