Ribbed U Channel - 3mm Panel x 10mm Height x 7mm Wide (RUS1677)

https://www.sealsdirect.co.uk/web/image/product.template/21234/image_1920?unique=0bb6193
(2 reviews)

Ribbed U Channel - 3mm Panel x 10mm Height x 7mm Wide

£ 3.85 3.85 GBP £ 3.85

£ 3.85

Not Available For Sale

Per Metre (ex VAT)
Panel Gap: 3mm Height: 10mm Coil Length: 30m

This combination does not exist.

RUS1677 Drawing

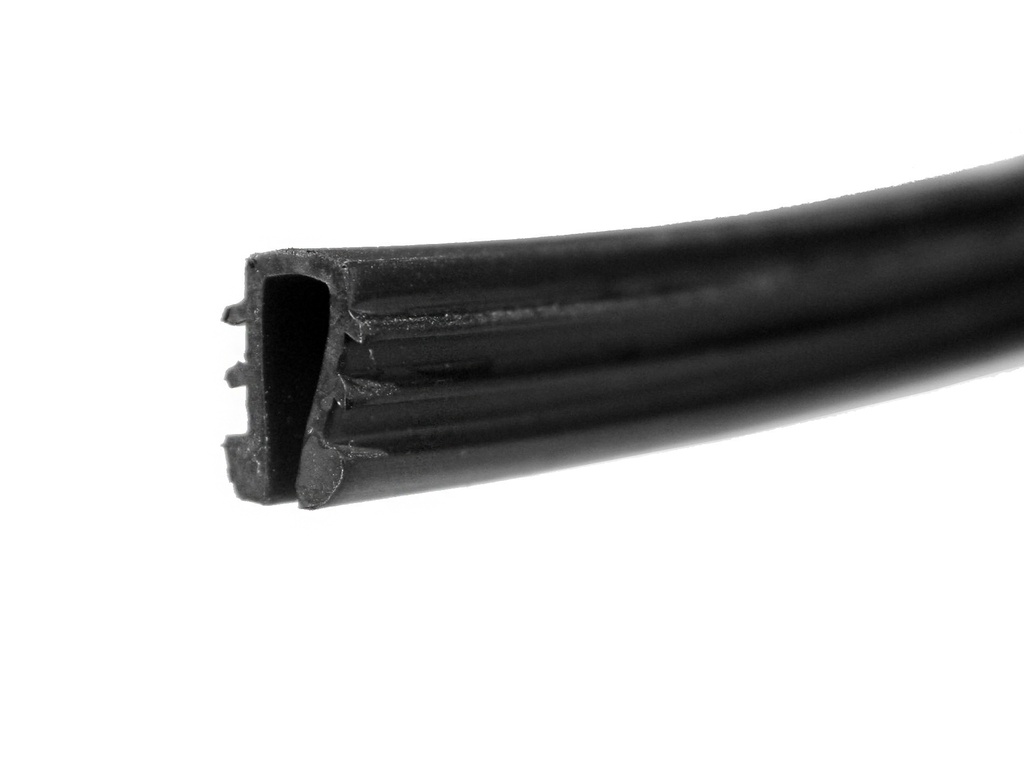

This ribbed U channel is designed to fit onto a 3mm panel edge. It is 10mm high x 7mm wide. This ribbed U channel is commonly used to make a seal around glass in Aluminium window channels. The outside ribbed fins allow for some tolerance on the internal channel width.

We manufacture this product from high quality EPDM which is a rubber compound suitable for a wide range of every day and industrial applications. This material has a good modular resistance to most substances including most chemicals, UV, air and ozone but is not recommended in environments which may come into contact with oil or fuel. EPDM is around the same hardness (70° Shore A) as the rubber on a car tyre and has an operating temperature range between -40°C to +120°C.

Ribbed U channels should hold themselves into the channel but can be secured in place using a Silicone sextant such as S137 (white) or S138 (clear). These are available from our website.
