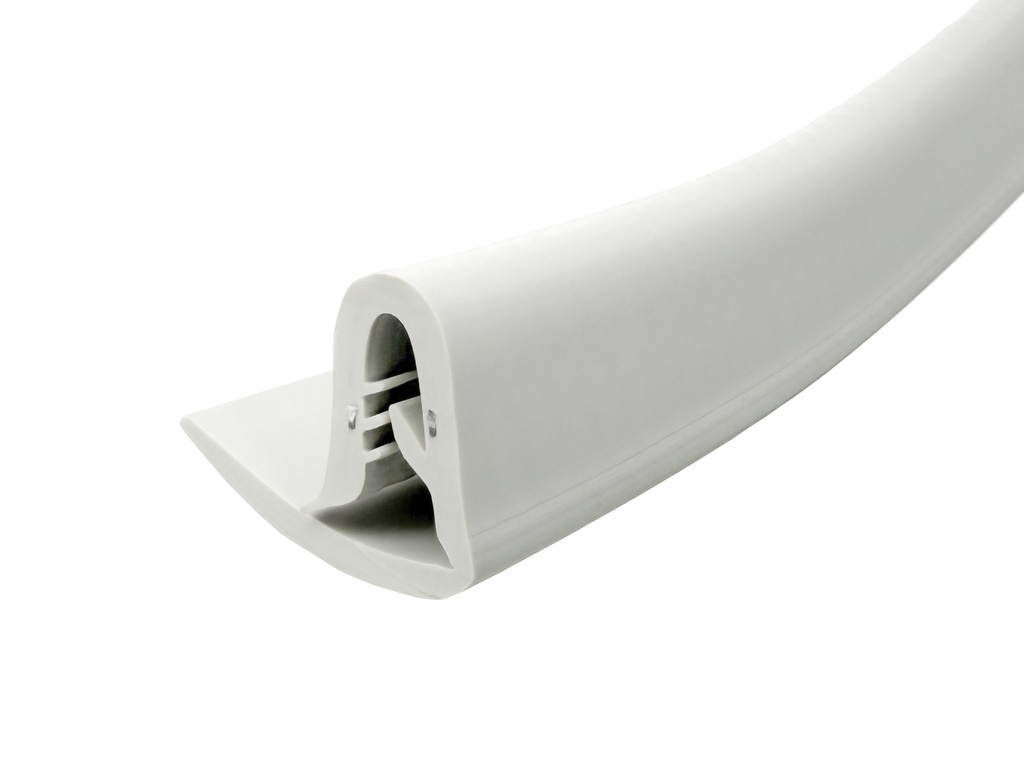

This off-white PVC edge trim, also known as Titanfast, is designed to fit onto a 1.5mm to 2.5mm panel edge. It has an off-white trim cover tail. This edge trim can be fitted onto a range of different materials such as sheet metal, fibreglass, glass, wood and polycarbonate. It is sold in a pre-cut 4.5 metre length.
It is manufactured with a self-gripping metal spine so will hold itself in place without the need for additional adhesive. This creates a secure section able to hold its shape and withstand impact but can be removed and reused multiple times if required. It can be fitted onto an edge by tapping it on with your hand or a soft faced hammer.
This item is manufactured from a high-quality PVC which is a compound suitable for a wide range of everyday and industrial applications. This material has a good resistance to most substances including some chemicals, oil, fuel, UV, air and ozone. This product is around the same hardness (67° Shore A) as the rubber on a car tyre and has an operating temperature range between -20°C to +60°C.
This item is an off-white/light grey colour. Please note that the colour shown on screen may vary slightly from the actual product due to differences in screen settings and display.
Specifications

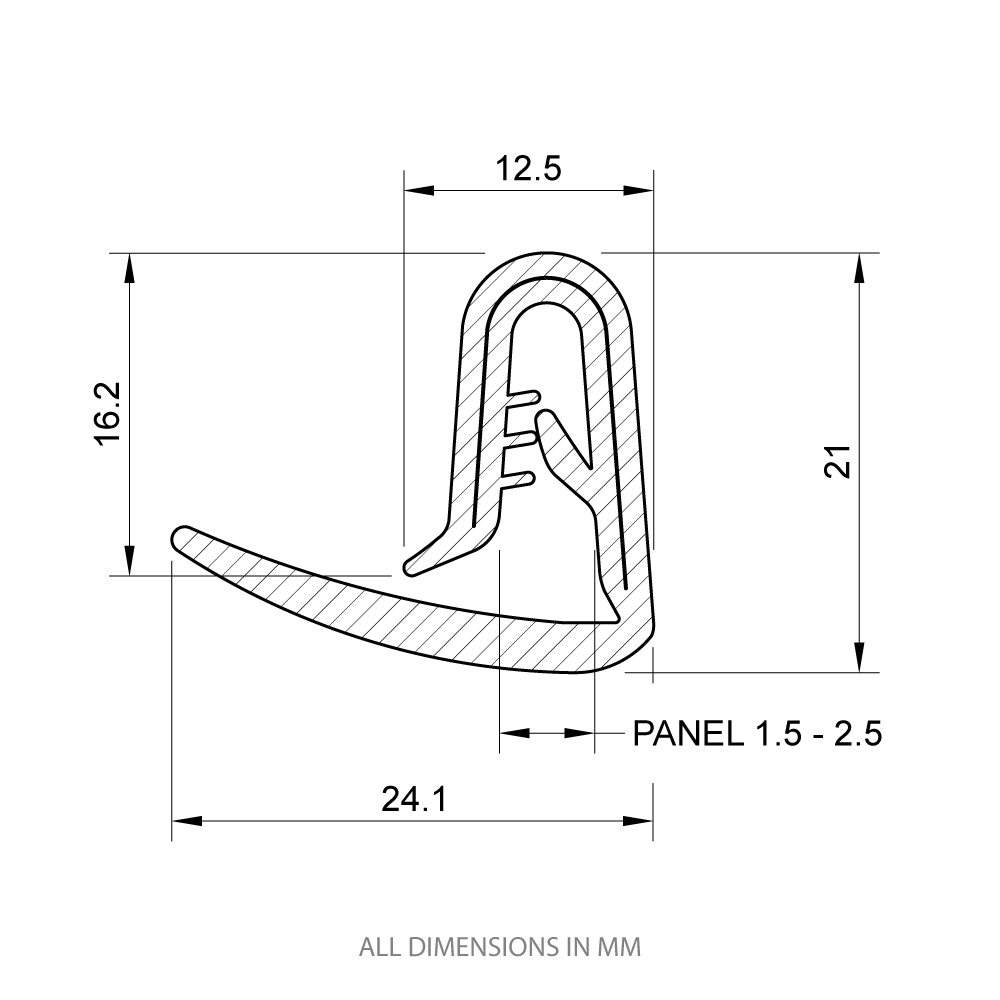

Technical Drawing
