Self Grip Top Seal With 12.3mm Diameter Bulb - To Fit 2mm to 3mm Panel (ETS3238)

(2 reviews)

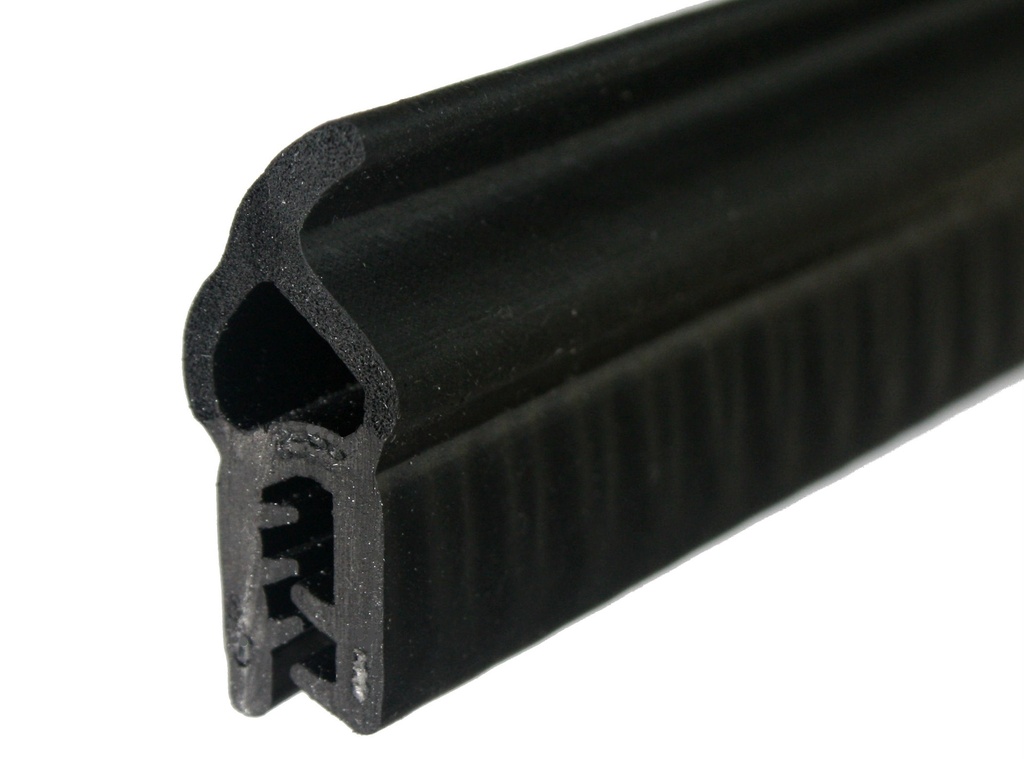

Self Grip Top Seal With 12.3mm Diameter Bulb - To Fit 2mm to 3mm Panel

£ 4.95 4.95 GBP £ 4.95

£ 4.95

Per Metre (ex VAT)

Available by the metre. 10% discount on 50+ metres

Panel: 2mm to 3mm Diameter: 12.3mm Coil Length: 50m
ETS3238 Drawing

This edge trim with top seal is designed to fit onto a 2mm to 3mm thick panel edge and has a 12.3mm sponge sealing bulb. It is commonly used to create a watertight seal on windows, doors, hatches, lockers, enclosures and cabinets. We recommend compressing the sponge bulb by approximately 30% to create a good seal and avoid compression set.

It is manufactured with a self-gripping metal spine so will hold itself in place without the need for additional adhesive. This creates a secure section able to hold its shape and withstand impact but can be removed and reused multiple times if required. It can be fitted onto an edge by tapping it on with your hand or a soft faced hammer.

We manufacture this product from high quality EPDM which is a rubber compound suitable for a wide range of everyday and industrial applications. This material has a good modular resistance to most substances including most chemicals, UV, air and ozone but is not recommended in environments which may come into contact with oil or fuel. EPDM has an operating temperature range between -40°C to +120°C.
