Morris Minor Quarterlight Frame to Door Seal (ATMM1949)

https://www.sealsdirect.co.uk/web/image/product.template/21502/image_1920?unique=3931ef6
(0 review)

Morris Minor Quarterlight Frame to Door Seal

£ 9.45 9.450000000000001 GBP £ 9.45

£ 9.45

Not Available For Sale

Per Metre (ex VAT)
Width: 24.2mm Height: 3.2mm Coil Length: 30m

This combination does not exist.

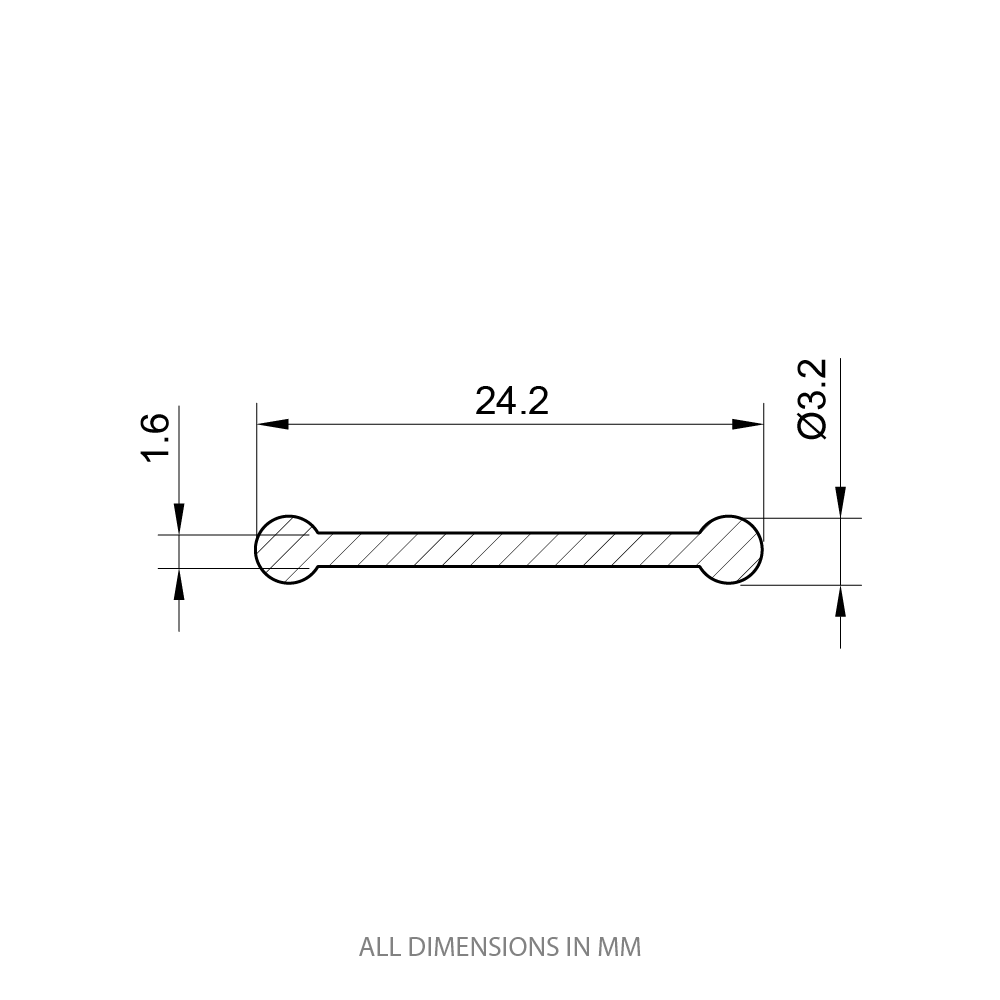

ATMM1949 Drawing

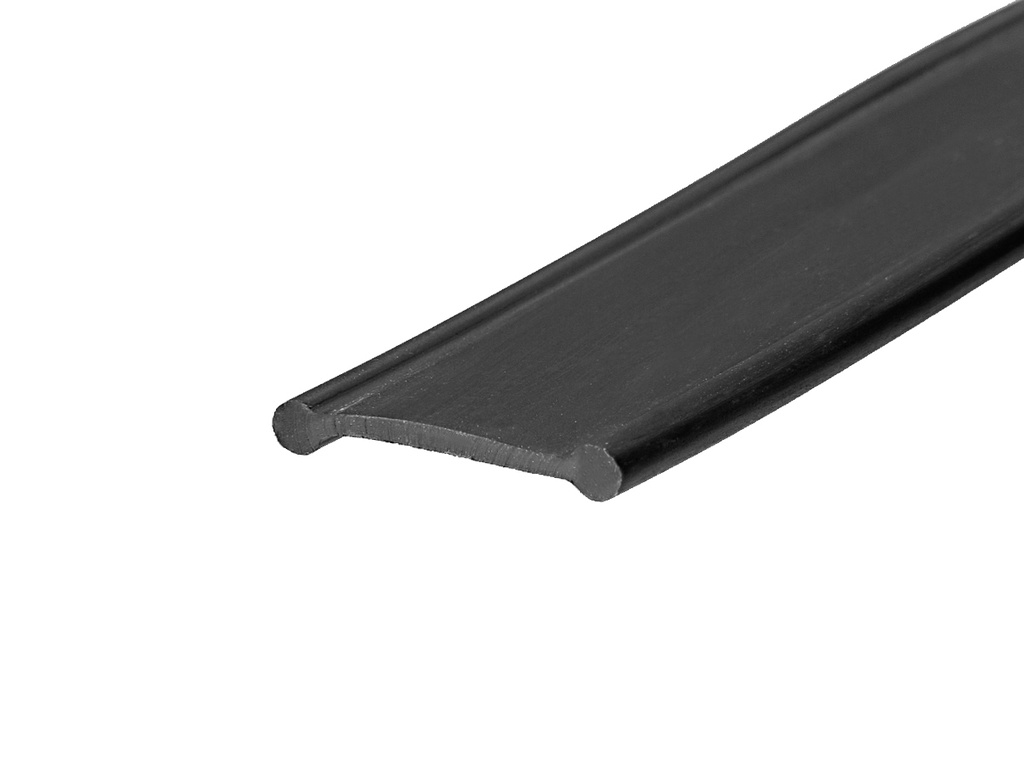

This rubber section is 24.2mm by 3.2mm and supplied by the linear metre. It is designed to be used on a Morris Minor as a quarterlight frame to door seal. Although the primary use of this seal is within the Morris automotive industry, the unique profile shape makes this section ideal for other classic or modern vehicles or bespoke industrial applications.

It can be bonded onto most clean flat surfaces such as metal, wood and plastic. We recommend using a good quality adhesive such as S136 or A262 (available from our website).

We manufacture this product from high quality EPDM which is a rubber compound suitable for a wide range of everyday and industrial applications. This material has a good modular resistance to most substances including most chemicals, UV, air and ozone but is not recommended in environments which may come into contact with oil or fuel. EPDM is around the same hardness (70° Shore A) as the rubber on a car tyre and has an operating temperature range between -40°C to +120°C.
