Land Rover Series 1 Door Pillar Seal ( ATLR1971 )

Land Rover Series 1 Door Pillar Seal

£ 30.15 30.150000000000002 GBP £ 30.15

£ 30.15

Per Metre (ex VAT)

Available by the metre. 10% discount on 25+ metres

Diameter: 18.7mm Tail Length: 18mm Thickness: 2.6mm Coil Length: 25m

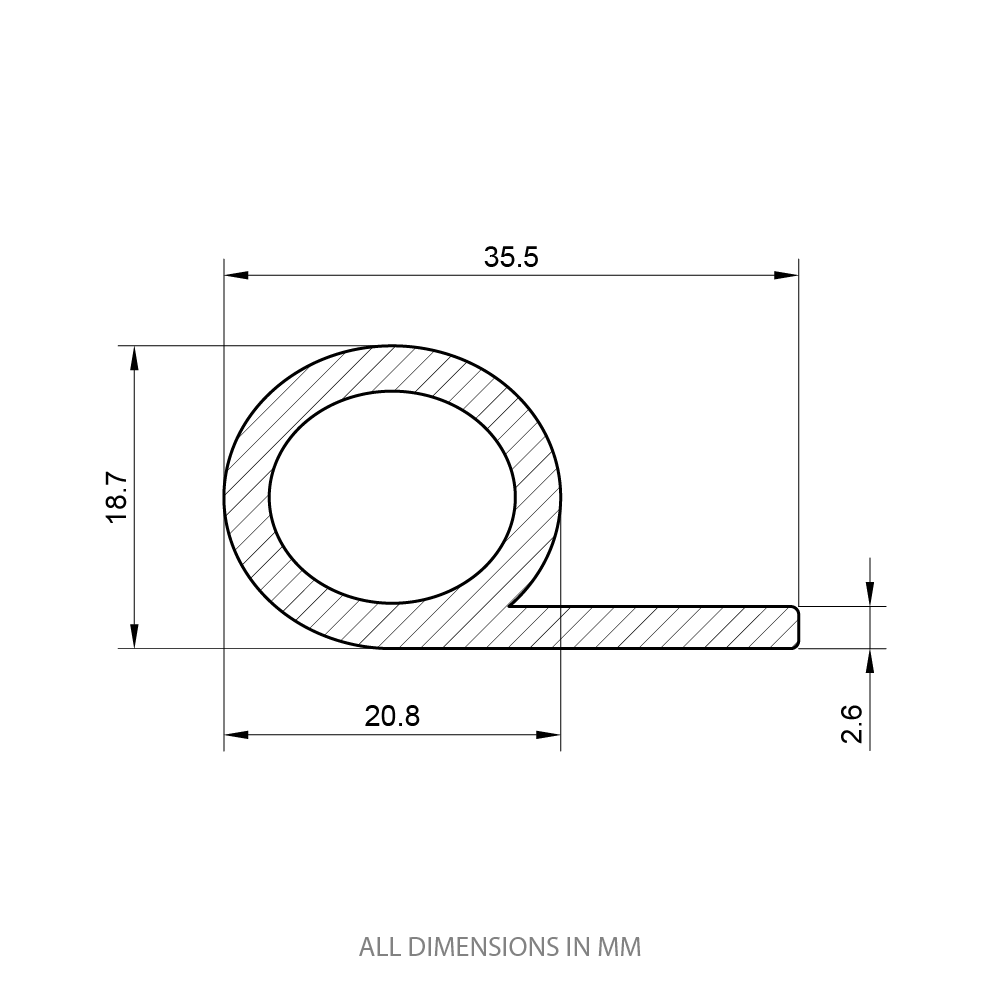

ATLR1971 Drawing

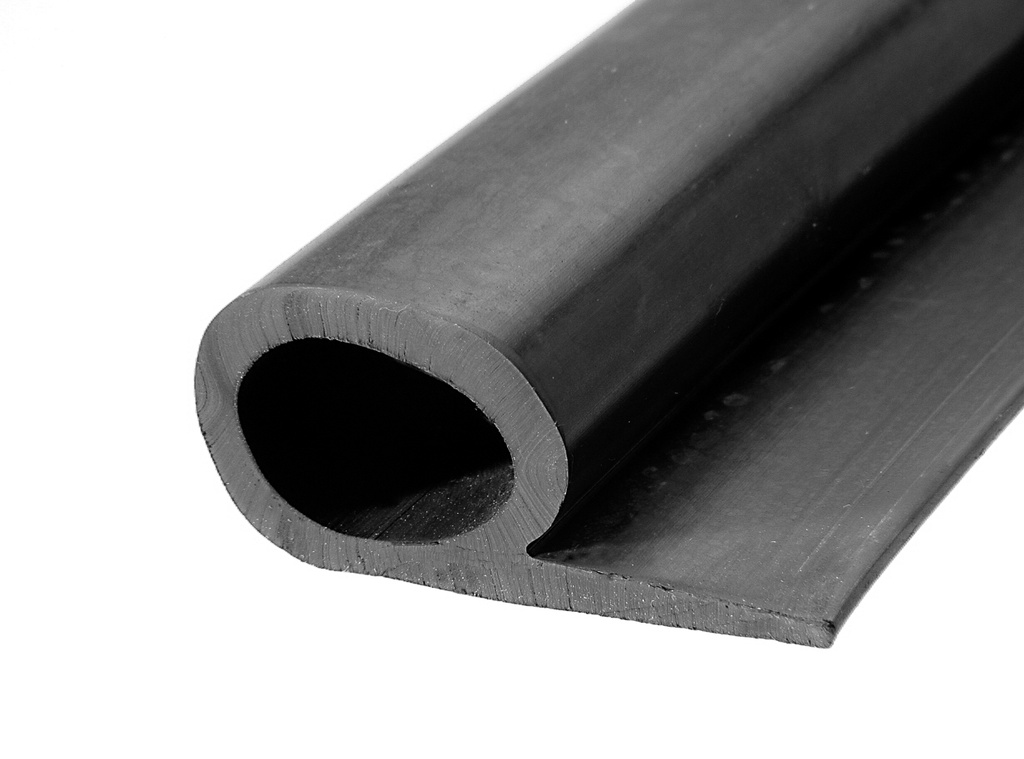

This rubber P seal is 35.5mm by 18.7mm and supplied by the linear metre. It is designed to be used as a door pillar seal on a Land Rover Series 1. Although the primary use of this seal is within the Land Rover automotive industry, the unique profile shape makes this section ideal for other classic or modern vehicles or bespoke industrial applications.

The flange/tail length can be extended or thickened by bonding solid neoprene strip onto it using a good quality contact adhesive such as our A139 or A262 (available from our website). This profile can also be bonded onto most clean flat surfaces such as plastic, wood and metal.

We manufacture this product from high quality EPDM which is a rubber compound suitable for a wide range of everyday and industrial applications. This material has a good modular resistance to most substances including most chemicals, UV, air and ozone but is not recommended in environments which may come into contact with oil or fuel. EPDM is around the same hardness (70° Shore A) as the rubber on a car tyre and has an operating temperature range between -40°C to +120°C.

Specifications

Technical Drawing
Technical Drawing
Material Data Sheet
Material Data Sheet
