Jaguar NDV Section Upper B Post QL Hinge Pillar Seal - BD17071 (ATJ1936)

(0 review)

Jaguar NDV Section Upper B Post QL Hinge Pillar Seal - BD17071

£ 16.20 16.2 GBP £ 16.20

£ 16.20

Per Metre (ex VAT)

Available by the metre. 10% discount on 30+ metres

Width: 10mm Height: 13.3mm BD17071 Coil Length: 30m
ATJ1936 Drawing

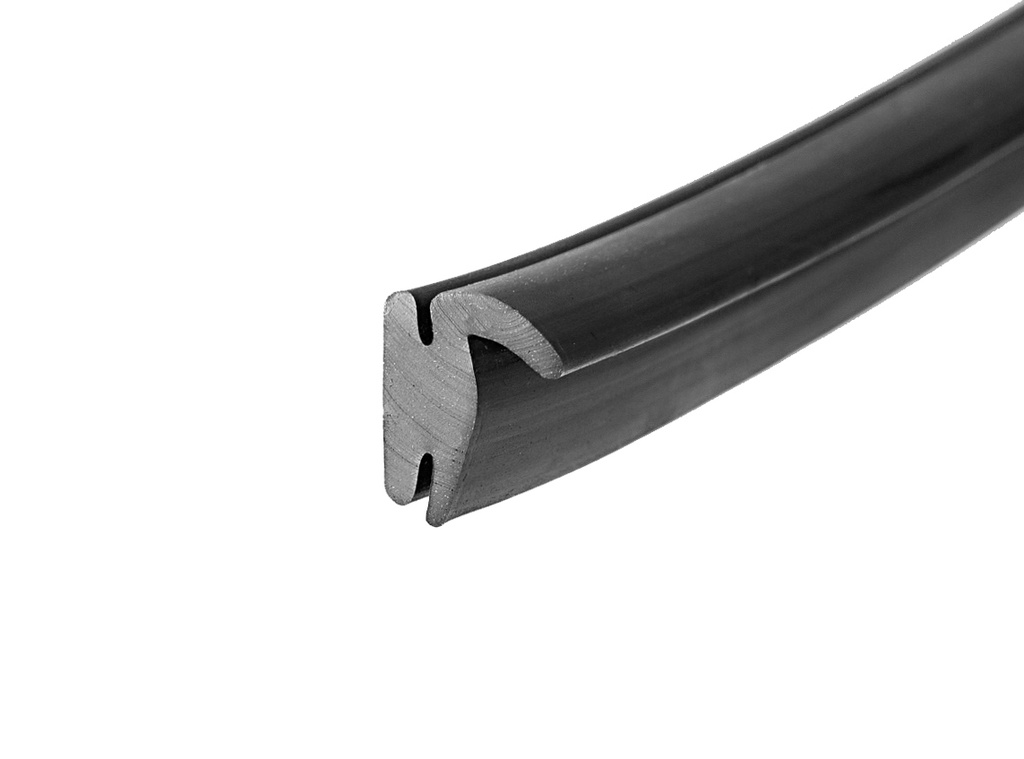

This rubber section is 10mm by 12.3mm and supplied by the linear metre. It is designed to be used on a Jaguar NDV as an upper B post QL hinge pillar seal (BD17071). Although the primary use of this seal is within the Jaguar automotive industry, the unique profile shape makes this section ideal for other classic or modern vehicles or bespoke industrial applications.

This seal is designed to slide into a channel. It should hold itself in the channel but can be further secured using a good quality adhesive (S136) or silicone sealant (S138). These products are available via our website.

We manufacture this product from high quality EPDM which is a rubber compound suitable for a wide range of everyday and industrial applications. This material has a good modular resistance to most substances including most chemicals, UV, air and ozone but is not recommended in environments which may come into contact with oil or fuel. EPDM is around the same hardness (70° Shore A) as the rubber on a car tyre and has an operating temperature range between -40°C to +120°C.
