U Channel With Lip - 1.7mm Panel x 18mm Height (AT2007)

(1 review)

U Channel With Lip - 1.7mm Panel x 18mm Height

£ 3.15 3.15 GBP £ 3.15

£ 3.15

Per Metre (ex VAT)

Available by the metre. 10% discount on 50+ metres

Width: 6mm Height: 18mm Panel Gap: 1.7mm Coil Length: 50m
AT2007 Drawing

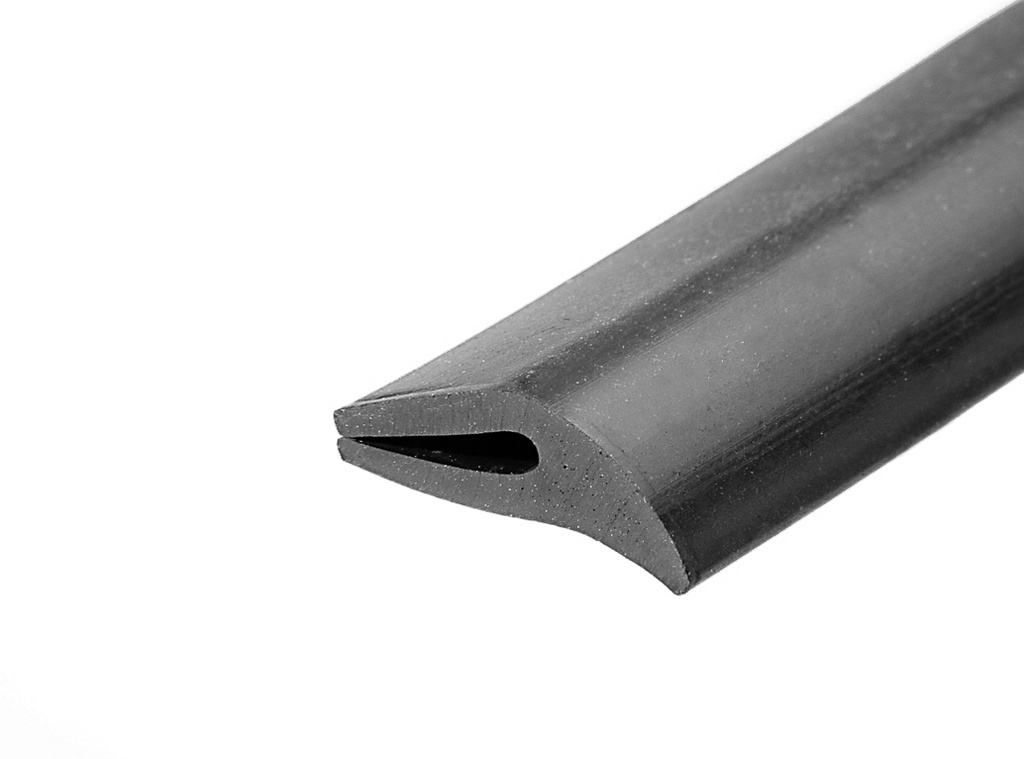

This rubber U channel with lip is 18mm by 6mm and supplied by the linear metre. Although its primary use is within the automotive industry, the unique shape makes this section ideal for other DIY, marine or industrial applications. The smooth black appearance allows this seal to be used as a neat sealing solution in projects where the product will be visible.

This section is designed to be fitted over an edge or panel approximately 1.7mm thick. It will need to be bonded onto the edge using a good quality adhesive (S136) or silicone sealant (S138). These products are available via our website.

We manufacture this product from high quality EPDM which is a flexible rubber compound suitable for a wide range of everyday and industrial applications. This material has a good modular resistance to most substances including most chemicals, UV, air and ozone but is not recommended in environments which may come into contact with oil or fuel. EPDM is around the same hardness (70° Shore A) as the rubber on a car tyre and has an operating temperature range between -40°C to +120°C.
