Rubber products are important to various industrial applications, ranging from the automotive to aerospace sector. Like most items manufactured from raw materials, there are accepted tolerance levels that help compensate for variations in the rubber compound. As most of the products we manufacture are for a specific application, they must adhere to these dimensional tolerances to ensure they function correctly. Ensuring the precision and quality of these rubber components is essential, as even minor deviations can lead to a reduced sealing performance and functional issues.
What are Rubber Tolerances?
Rubber tolerances are the permissible limits of variation in the dimensions of rubber products. These tolerances are important for achieving optimal performance and ensuring interchangeability of components. They consider factors such as the inherent variability in rubber material properties, manufacturing processes and environmental conditions during production. The tolerances are specified in International Standards Organisation ISO 3302-1 and British Standards BS 3734 for rubber products. These standards address several areas:
Dimensional Tolerances: This specifies the maximum permissible limits for dimensions such as thickness, diameter and length.
Application-Specific Requirements: Offers guidance tailored to the specific needs of different industries, ensuring that the components perform well under the expected service conditions.
Quality Assurance: Facilitates consistency in production and helps in maintaining the reliability and longevity of rubber products.
International Standards ISO 3302-1
Seals Direct follow the guidelines set by ISO 3302-1 in the manufacture of our products. This guidance sets the international benchmark for the tolerances of rubbed-based products, such as seals, trims and gaskets. It attempts to standardise the criteria across different countries to aid global trade. Similar to BS 3734, ISO 3302-1 provides a framework for classifying tolerances based on product type and its application environment. Key features of ISO 3302-1 include:
Global Compliance: ISO aims to promote uniformity in standards across international borders. This facilitates easier compliance for multinational companies and allows us to manufacture products for organisations all around the globe. The sealing solutions we create for these companies can be used with confidence that they are manufactured to a set of tolerances that conform to the industry standards set by their country.
Comprehensive Classification: ISO also aims to categorise products into different classes based on their precision requirements. This helps us specify the right tolerances for each application.
Versatility: Addresses a wide range of rubber products, from simple seals to complex molded parts, ensuring broad applicability.

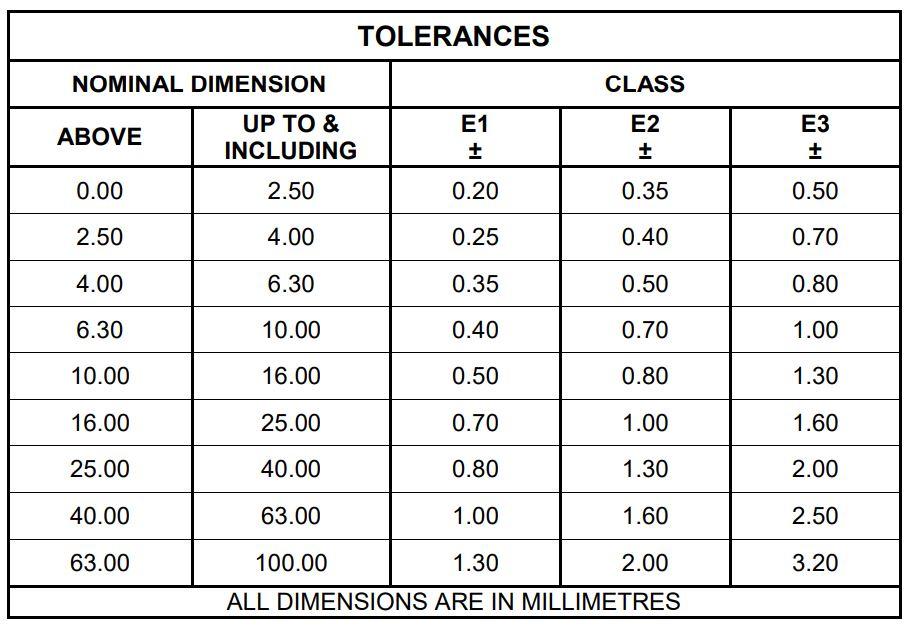

We manufacture our rubber extrusions to an E1, E2 or E3 tolerance class. This will be specified on the dimension drawing of each product. Although the majority of our products are manufactured to an E3 tolerance, we are continuously looking at improving our practices.
British Standards BS 3734
BS 3734 is a comprehensive standard that outlines the tolerances for rubber products manufactured in the UK. It categorises rubber items based on their type and application and provides detailed guidelines on allowable dimensional variations. As a rubber manufacturer, this guidance helps us ensure that our rubber extrusions meet the stringent quality and precision requirements expected by our customers.
Importance of Adhering to Rubber Tolerances
Adhering to specified rubber tolerances is not only about compliance with industry standards; it plays an important role in ensuring the overall functionality, safety, and efficiency of mechanical systems. Rubber components, such as seals and gaskets, are designed to operate within precise dimensional ranges. Deviations from these specified tolerances can lead to issues such as leakages and sealing failures. When seals do not fit as intended, they may not provide the necessary barrier to prevent fluid or gas leakage. This can lead to system failures, increased downtime and costly repairs.
Incorrect tolerances can also cause increased wear and tear on mechanical components. When parts do not align correctly due to dimensional inaccuracies, there is a higher likelihood of friction and misalignment. This not only accelerates the degradation of the components but also reduces their operational lifespan. For example, a rubber extrusion that is too thick or thin can cause uneven pressure distribution and lead to premature wear.
In precision-dependent sectors such as aerospace and automotive, even slight deviations from specified tolerances can result in significant operational inefficiencies. These industries rely on exacting standards to ensure that every component functions optimally within the larger system. Incorrect tolerances can lead to increased maintenance costs, as components that do not fit perfectly may require more frequent replacements and adjustments. This not only drives up operational costs but can also affect the reliability and performance of the equipment, ultimately impacting the safety and satisfaction of end-users. Ensuring adherence to rubber tolerances is important for maintaining the integrity and performance of mechanical systems across various industries.
